AM-Series

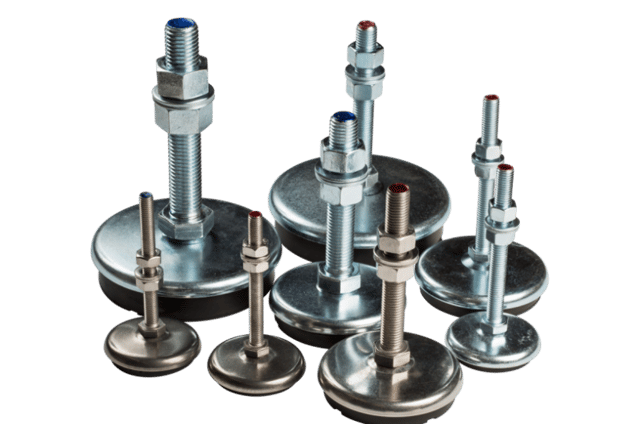

Sunnex AM-Series Anti-Vibration Mounts are best suited for those applications where vibration attenuation and chemical resistance is of primary concern. The entire shape and form of the stainless steel and zinc plated machine mounts excludes pockets or recesses where dirt or moisture can collect helping to prevent corrosion or bacterial growth. This makes the AM-Series ideal for applications that require constant cleaning. The bolt through connection of the base unit and the bolt provide a solid connection while providing the advantage of a 7.5 degree swivel.
INDUSTRY APPLICATIONS
Product Details
FEATURES
- Corrosive resistant design
- Swivel up to +/– 7.5° for added flexibility
- Available in a wide variety of sizes for any application
- High-grade materials
- Non-magnetic 304 grade stainless steel
BENEFITS
- Stainless Steel or Zinc Plated
- Quick Installation
- Dampens Vibration
- High Durability
- Excellent anti-vibration
- Excellent levelling
- Excellent for sloping surface Reduction of noise
RESOURCES

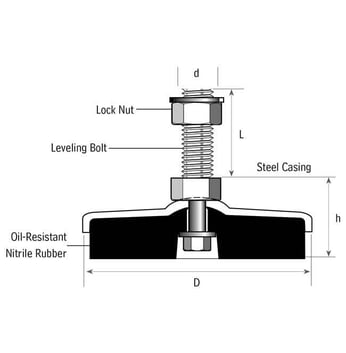

.jpg?width=346&height=354&name=am-series-drawing%20(1).jpg)
| Stainless Item No. | Zinc Plated Item No. | Load Capacity (lbs) | Base Diameter, D (in) | Leveling Bolt (d x L) | Base Height, h (in) | Overall Ht (in) | ||
|---|---|---|---|---|---|---|---|---|
| 102152SS | 102152ZP | 250 | 2.64 | 1/2-13 | x | 2 | 15/16 | 2.94 |
| 102154SS | 102154ZP | x | 4 | 4.94 | ||||
| 102156SS | 102156ZP | x | 6 | 6.94 | ||||
| 102154SS | 102154ZP | 1/3-13 | x | 4 | 4.94 | |||
| 10211212SS | 10211212ZP | M12-1.75 | x | 120 | 5.66 | |||
| 102252SS | 102252ZP | 500 | 2.64 | 1/2-13 | x | 2 | 15/16 | 2.94 |
| 102254SS | 102254ZP | x | 4 | 4.94 | ||||
| 102256SS | 102256ZP | x | 6 | 6.94 | ||||
| 102264SS | 102264ZP | 5/8-11 | x | 4 | 1 | 5 | ||
| 102266SS | 102266ZP | x | 6 | 7 | ||||
| 10221212SS | 10221212ZP | M12-1.75 | x | 120 | 15/16 | 5.66 | ||
| 10221612SS | 10221612ZP | M16-2 | x | 120 | 1 | |||
| 103154SS | 103154ZP | 1,000 | 3.86 | 1/2-13 | x | 4 | 1 3/8 | 5.38 |
| 103156SS | 103156ZP | x | 6 | 7.38 | ||||
| 103164SS | 103164ZP | 5/8-11 | x | 4 | 1 7/16 | 5.44 | ||
| 103166SS | 103166ZP | x | 6 | 7.44 | ||||
| 103168SS | 103168ZP | x | 8 | 9.44 | ||||
| 1031610SS | 1031610ZP | x | 10 | 11.44 | ||||
| 103174SS | 103174ZP | 3/4-10 | x | 4 | 1 9/16 | 5.56 | ||
| 103176SS | 103176ZP | x | 6 | 7.56 | ||||
| 103178SS | 103178ZP | x | 8 | 9.56 | ||||
| 1031710SS | 1031710ZP | x | 10 | 11.56 | ||||
| 10311612SS | 10311612ZP | M16-2 | x | 120 | 1 3/8 | 6.1 | ||
| 10312012SS | 10312012ZP | M20-2 | x | 120 | 1 7/16 | 5.66 | ||
| 103254SS | 103254ZP | 2,000 | 3.86 | 1/2-13 | x | 4 | 1 3/8 | 5.38 |
| 103256SS | 103256ZP | x | 6 | 7.38 | ||||
| 103264SS | 103264ZP | 5/8-11 | x | 4 | 1 7/16 | 5.44 | ||
| 103266SS | 103266ZP | x | 6 | 7.44 | ||||
| 103268SS | 103268ZP | x | 8 | 9.44 | ||||
| 1032610SS | 1032610ZP | x | 10 | 11.44 | ||||
| 103274SS | 103274ZP | 3/4-10 | x | 4 | 1 9/16 | 5.56 | ||
| 103276SS | 103276ZP | x | 6 | 7.56 | ||||
| 103278SS | 103278ZP | x | 8 | 9.56 | ||||
| 1032710SS | 1032710ZP | x | 10 | 11.56 | ||||
| 10321612SS | 10321612ZP | M16-2 | x | 120 | 1 3/8 | 6.1 | ||
| 10322012SS | 10322012SS | M20-2.5 | x | 120 | 1 7/16 | 6.16 | ||
| 10322415SS | 10322415ZP | M24-3 | x | 150 | 1 9/16 | 6.29 | ||
| 104154SS | 104154ZP | 3,000 | 5.50 | 1/2-13 | x | 4 | 1 15/16 | 5.94 |
| 104156SS | 104156ZP | x | 6 | 7.94 | ||||
| 104164SS | 104164ZP | 5/8-11 | x | 4 | 2 | 6.00 | ||
| 104166SS | 104166ZP | x | 6 | 8.00 | ||||
| 104174SS | 104174ZP | 3/4-10 | x | 4 | 2 1/8 | 6.13 | ||
| 104176SS | 104176ZP | x | 6 | 8.13 | ||||
| 104178SS | 104178ZP | x | 8 | 10.13 | ||||
| 1041710SS | 1041710ZP | x | 10 | 12.13 | ||||
| 10411612SS | 10411612ZP | M16-2 | x | 120 | 2 | 6.72 | ||
| 10412012SS | 10412012ZP | M20-2.5 | x | 120 | 2 1/8 | 6.85 | ||
| 10412412SS | 10412412ZP | M24-3 | x | 120 | 2 1/4 | 6.97 | ||
| 104254SS | 104254ZP | 1/2-13 | x | 4 | 1 15/16 | 5.94 | ||
| 104256SS | 104256ZP | 4,000 | 5.50 | 1/2-13 | x | 6 | 1 15/16 | 7.94 |
| 104264SS | 104264ZP | 5/8-11 | x | 4 | 2 | 6.00 | ||
| 104266SS | 104266ZP | x | 6 | 8.00 | ||||
| 104274SS | 104274ZP | 3/4-10 | x | 4 | 2 1/8 | 6.13 | ||
| 104276SS | 104276ZP | x | 6 | 8.13 | ||||
| 104278SS | 104278ZP | x | 8 | 10.13 | ||||
| 1042710SS | 1042710ZP | x | 10 | 12.13 | ||||
| 10421612SS | 10421612ZP | M16-2 | x | 120 | 2 | 6.72 | ||
| 10422012SS | 10422012ZP | M20-2.5 | x | 120 | 2 1/8 | 6.85 | ||
| 10422415SS | 10422415ZP | M24-3 | x | 150 | 2 1/4 | 6.97 | ||
