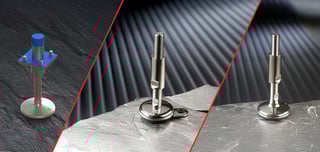

Hygienic Caster and Sustainable Stainless Steel Mounts

Certified hygienic leveling feet from Sunnex decrease water usage, streamline cleaning, and limit contamination in production.

The benefit of choosing a certified Hygienic solution for food or pharmaceutical industries

Engineered for optimal hygiene and efficiency, featuring self-draining surfaces and sealed moving parts to minimize cleaning requirements and prevent bacterial growth. A low-friction washer facilitates easy adjustment, while vulcanized FDA-approved rubber bases provide anti-vibration and anti-slip properties. Constructed from high-quality stainless steel, with options for AISI 304 or 316.

Extensive product offering

High precision stainless steel mounts designed to comply with 3-A, FDA ,USDA & EHEDG with over 1,000 variations to meet diverse application needs.

Engineering capabilities

To meet our customers' engineering needs, we provide both local and global support through our facilities in North America and Europe.

Quality control

Our products are designed to meet the highest international standards. Sunnex USA is an ISO 9001 certified company.

Discover the certified hygienic leveling feet

Explore the Certified hygienic leveling feet designed to minimize cleaning time, water, and detergent usage, and significantly reduce downtime, while ensuring compliance with stringent 3A ,FDA, USDA regulations. Ideal to enhance food and workplace safety, improved competitive positioning, and a stronger environmental profile.
Filter
4 of 4 products
INDUSTRY APPLICATIONS
LOAD CAPACITY RANGE

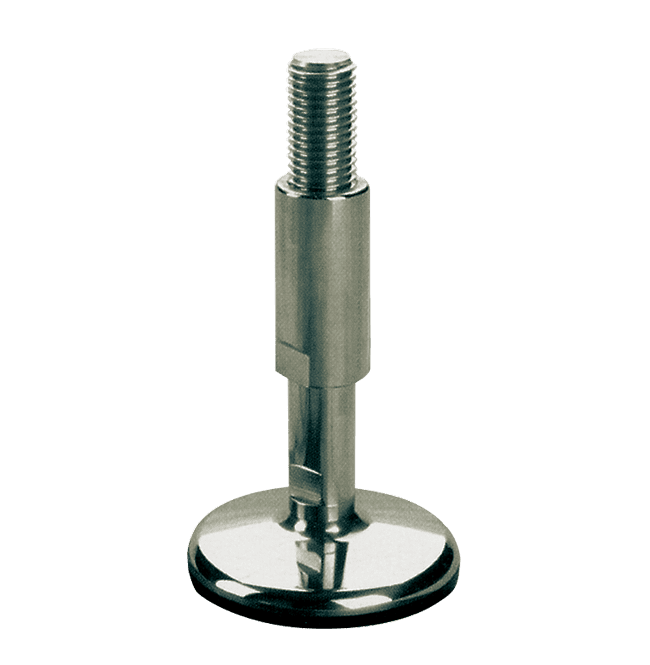

Hygienic Type H - Sunnex

Hygienic Type H

These FDA and USDA approved stainless mounts meet the strict criteria and all regulation requirements for food and drug processing equipment. A special rubber is vulcanized to the housing producing a completely hygienic seal. The ANSI 304 stainless steel provides high corrosion resistance. The full range of motion from a 10° pivot provides secure footing and complete vibration control. This model is available in a fully FDA approved version with or without thread casings for maximum thread adjustment. Either version is also available in NSI 316 SS, for aggressively corrosive environments. Alternate designs include one or two anchoring holes that secure to the floor.
EXPLORE PRODUCT

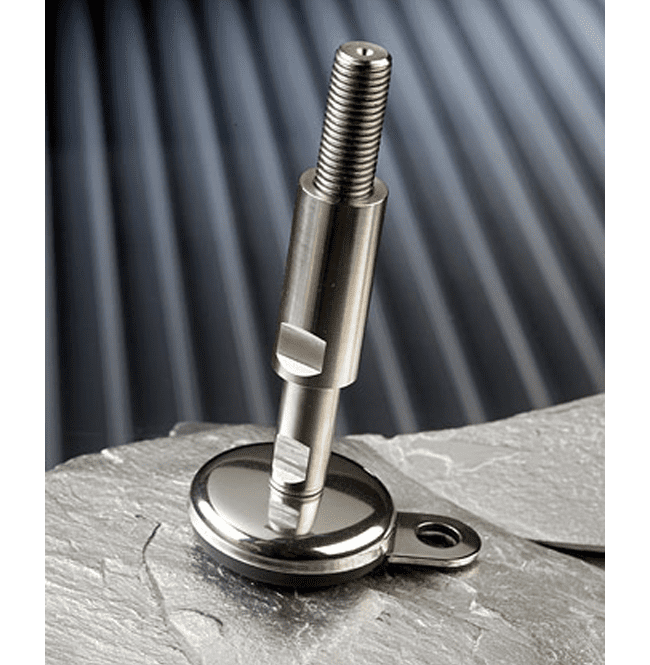

Hygienic Type M - Sunnex

Hygienic Type M

The Sunnex Type Hygienic M Series has a rounded and polished design, for applications requiring frequent cleaning and wash-down. The 5" swivel provides full functionality even on inclined surfaces. Models are available in a wide range of load capacities, bolt diameters and length configurations. The M Series Hygienic Leveling Mounts are for added cleanliness. Optional anchoring holes are available to provide easy fastening to equipment. In addition, integrated adjustment flats in the bolt allow full adjustment, without sacrificing height, even in a blind hole design.
EXPLORE PRODUCT

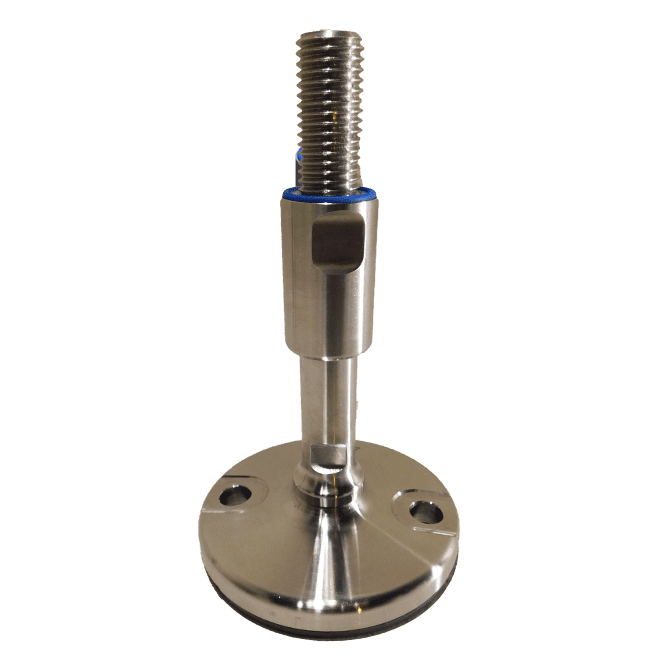

Hygienic Type XH - Sunnex

Hygienic Type XH

The XH machine foot is certified according to the 3A hygienic standard: “88-00” and certified according to the EHEDG hygienic standard TYPE EL - CLASS 1. The patented XH machine foot is sealing all moveable parts 100 % hygienically, even if the load on the foot is removed. The design of the XH system reduces the cleaning effort to an absolute minimum. The sleeve covers the thread, and also functions as a nut. The machine foot admits slopes up to 10° of floors and equipment. The XH machine foot is marked with the 3A and EHEDG logo. Instructions of mounting/cleaning, the 3A and EHEDG certificate are sent together with the shipment.



EXPLORE PRODUCT

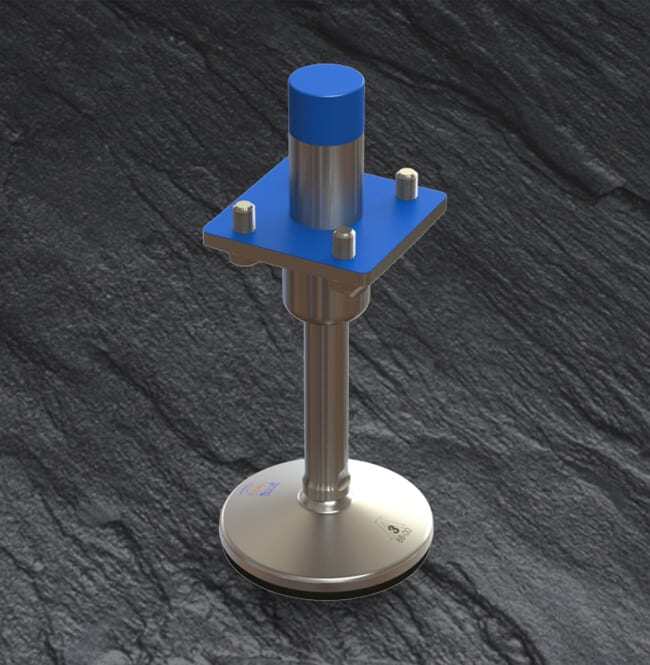

Hygienic Type XHF - Sunnex

Hygienic Type XHF

The XHF machine foot is certified according to the 3A hygienic standard: “88- 00” and certified according to the EHEDG hygienic standard TYPE EL - CLASS 1. The patented machine foot is sealing all moveable parts 100 % hygienically, even if the load on the foot is removed. The design of the XH-HL-3A-FA machine foot reduces the cleaning effort to an absolute minimum. The machine foot admits slopes up to 10° of floors and equipment. Two standard flanges are on stock. Other flanges and gaskets can be made on enquiry. Please see technical information. XHF80, XHF105, XHF125, XHF150 Please contact Sunnex Mounts for your specific requests. US and Metric threads are available.
EXPLORE PRODUCT

Comparison chart
