Hygienic Type H

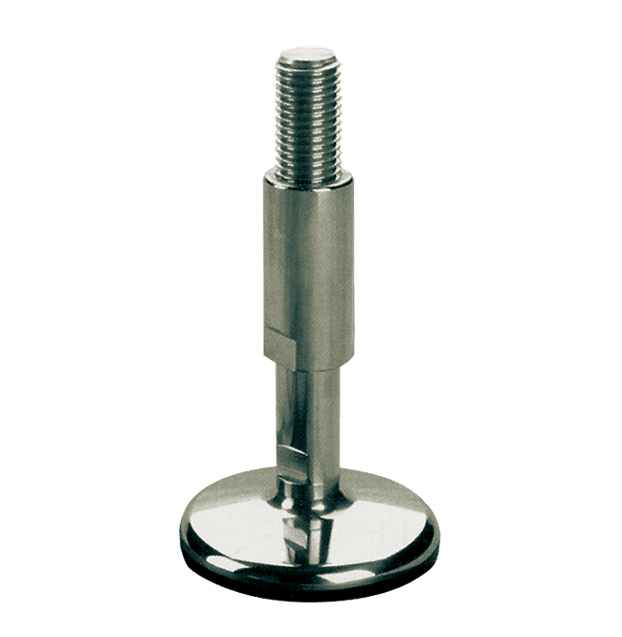

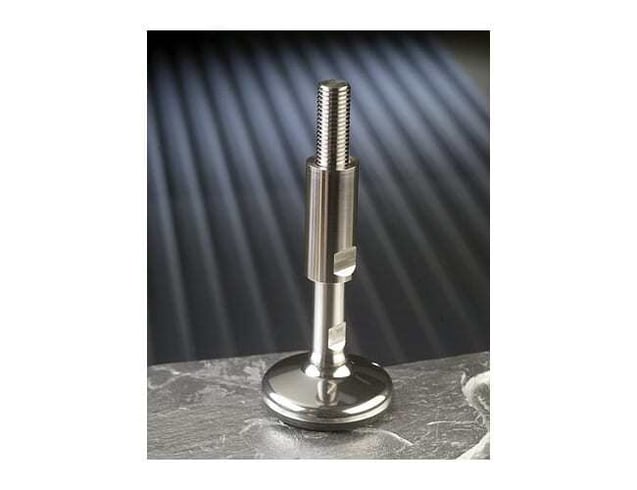

These FDA and USDA approved stainless mounts meet the strict criteria and all regulation requirements for food and drug processing equipment. A special rubber is vulcanized to the housing producing a completely hygienic seal. The ANSI 304 stainless steel provides high corrosion resistance. The full range of motion from a 10° pivot provides secure footing and complete vibration control. This model is available in a fully FDA approved version with or without thread casings for maximum thread adjustment. Either version is also available in NSI 316 SS, for aggressively corrosive environments. Alternate designs include one or two anchoring holes that secure to the floor.
INDUSTRY APPLICATIONS

Product Details

FEATURES
  • Thread casing functions as a lock-nut
  • 304 SS for high chemical resistance (316 SS available on request)
  • Wide temperature range -20 to 100 C
  • 10° swivel
BENEFITS

Ideal for :

  • Dairy processing machines
  • Brewery applications
  • Pharmaceutical and Medical equipment
  • Packaging machinery
  • Applications with the highest demands for hygiene and cleaning
  • 3A design-meat & poultry processing equipment



RESOURCES
US Standard

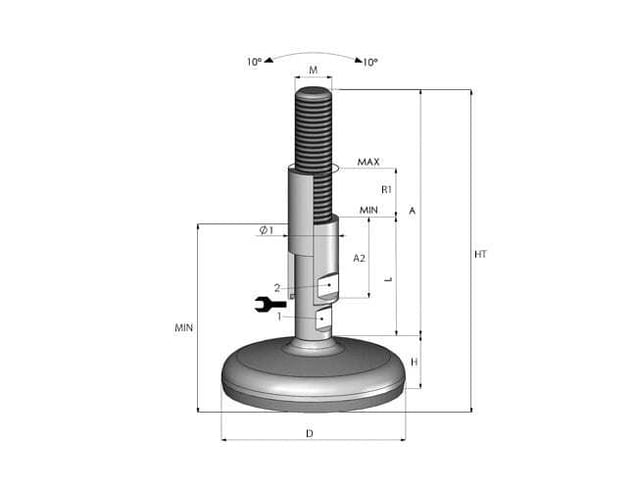

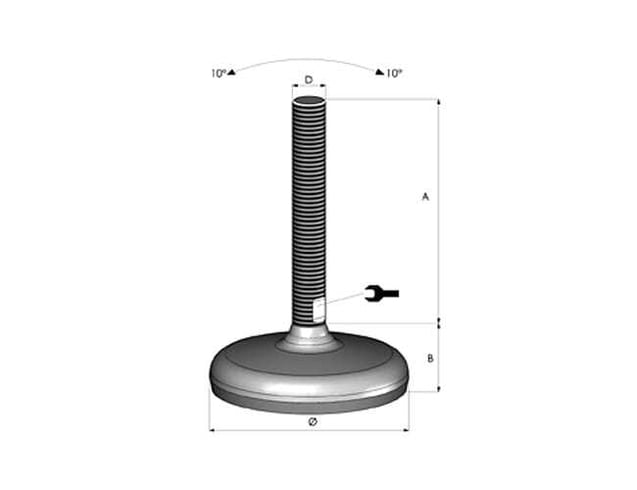

Item Load (lbs) Base Dia. (D) Thread (M) Length (A) Base Ht. (H) Overall (Ht) Casing Ht. (A2) Adjsmt (R1) Min Ht (Min)
H603A5865R5825 1100 2.36 5/8-11 6.5 1.33 7.8 2.5 2.02 3.98
H603A3465R3425 3/4-10
H603A3485R3435 8.5 9.8 3.5 3.02 6.15
H603A185R135 1-8
H803A5865R5825 2200 3.15 5/8-11 6.5 1.22 7.72 2.5 2.02 4.05
H803A3465R3425 3/4-10
H803A3485R3435 8.5 9.72 3.5 3.02 5.25
H803A185R135 1-8
H1003A5865R5825 3300 3.94 5/8-11 6.5 1.34 7.84 2.5 2.02 4.29
H1003A3465R3425 3/4-10
H1003A3485R3435 8.5 9.84 3.5 3.02 5.47
H1003A185R135 1-8
H1203A5865R5825 5500 4.72 5/8-11 6.5 1.5 8 2.5 2.02 4.4
H1203A3465R3425 3/4-10
H1203A3485R3435 8.5 10 3.5 3.02 5.59
H1203A185R135 1-8



 4.4
Metric
Item # Load Cap Base Diameter Thread Type Stud Length Base Ht Overall Ht
H603A16181R1655 700 kg 60 mm M16 166 mm 25 mm 191 mm
H603A16231R1685 216 mm 241 mm
H603A20181R2055 M20 166 mm 191 mm
H603A20231R2085 216 mm 241 mm
H803A16181R1655 1,500 kg 80 mm M16 166 mm 26 mm 192 mm
H803A16231R1685 216 mm 242 mm
H803A20181R2055 M20 166 mm 192 mm
H803A20231R2085 216 mm 242 mm
H1003A16181R1655 2,000 kg 100 mm M16 166 mm 35 mm 231 mm
H1003A16231R1685 216 mm 281 mm
H1003A20181R2055 M20 166 mm 231 mm
H1003A20231R2085 216 mm 281 mm
H1203A16181R1655 3,000 kg 120 mm M16 166 mm 236 mm
H1203A16231R1685 216 mm 290 mm
H1203A20181R2055 M20 166 mm 236 mm
H1203A20231R2085 216 mm 290 mm

GET YOUR FREE QUOTE

Related products to Hygienic Type H

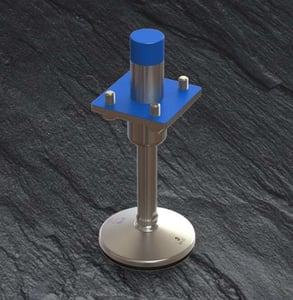

Hygienic Type XHF

VIEW PRODUCT

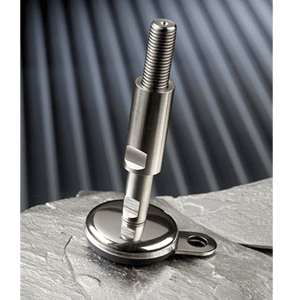

Hygienic Type M

VIEW PRODUCT

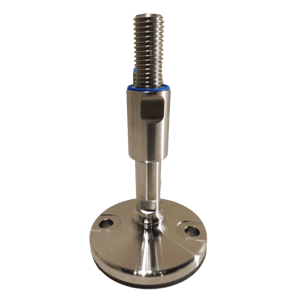

Hygienic Type XH
