Hygienic Type M

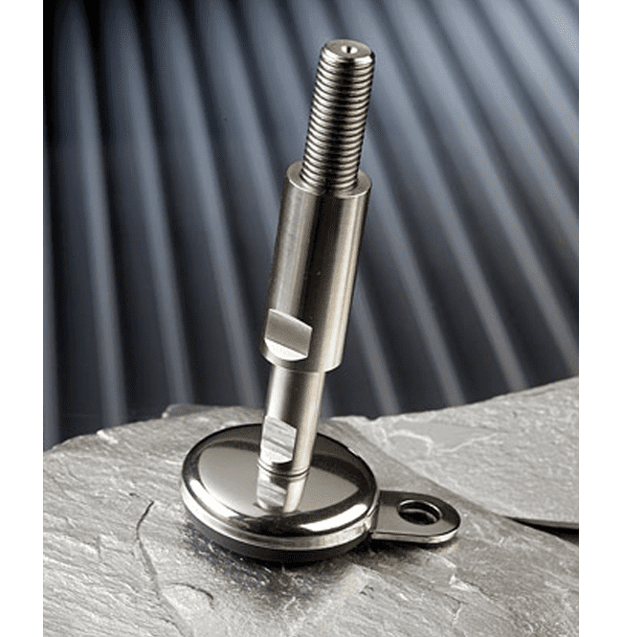

The Sunnex Type Hygienic M Series has a rounded and polished design, for applications requiring frequent cleaning and wash-down. The 5" swivel provides full functionality even on inclined surfaces. Models are available in a wide range of load capacities, bolt diameters and length configurations. The M Series Hygienic Leveling Mounts are for added cleanliness. Optional anchoring holes are available to provide easy fastening to equipment. In addition, integrated adjustment flats in the bolt allow full adjustment, without sacrificing height, even in a blind hole design.
INDUSTRY APPLICATIONS
Product Details
FEATURES
- Type Hygienic M - fixing can be fixed to the floor. The embedded fixing plate enables the fixed foot to absorb vibration
- The rounded smooth surfaces are specially designed to conform to the guidelines stated in the USDA standard for "supports" machine feet
- The sleeve covers the thread surface and also functions as a nut
- This machine foot admits up to 5" slopes of floors and equipment
BENEFITS
Ideal for :
- Dairy
- Brewery
- Pharmaceutical Industry
- Applications with the highest demands for hygiene and cleaning
RESOURCES
FIXING - US CHART | ||||||
---|---|---|---|---|---|---|

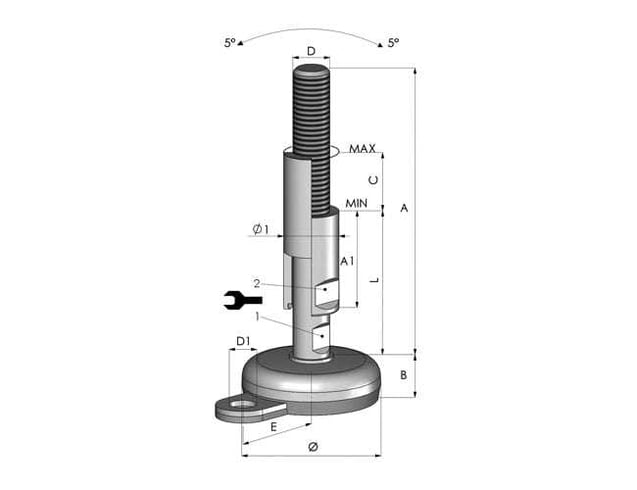

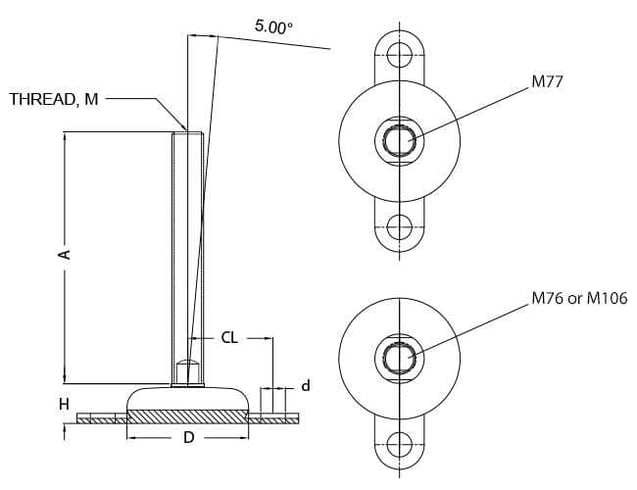

Item # | Load Cap W | Base Diameter Ø | Thread Type D | Stud Length A | Base Ht B | Overall Ht |
M763A5865R5825 | 2,640 lbs | 2.95" | 5/8" | 6.50" | .87" | 7.37" |
M763A5885R5835 | 8.50" | 9.37" | ||||
M763A3465R3425 | 3/4" | 6.50" | 7.37" | |||
M763A3485R3435 | 8.50" | 9.37" | ||||
M1063A5865R5825 | 3,080 lbs | 3.94" | 5/8" | 6.50" | 1.26" | 7.37" |
M1063A5885R5835 | 8.50" | 9.37" | ||||
M1063A3465R3425 | 3/4" | 6.50" | 7.37" | |||
M1063A3485R3435 | 8.50" | 9.37" | ||||
M773A5865R5825 | 2,640 lbs | 2.95" | 5/8" | 6.50" | .87" | 7.37" |
M773A5885R5835 | 8.50" | 9.37" | ||||
M773A3465R3425 | 3/4" | 6.50" | 7.37" | |||
M773A3485R3435 | 8.50" | 9.37" |
FIXING - METRIC CHART | ||||||
---|---|---|---|---|---|---|
Item # | Load Cap W | Base Diameter Ø | Thread Type D | Stud Length A | Base Ht B | Overall Ht |
M763A16182R1655 | 1,200 kg | 75 mm | M16 | 160 mm | 22 mm | 182 mm |
M763A16232R1685 | 210 mm | 232 mm | ||||
M763A20182R2055 | M20 | 160 mm | 182 mm | |||
M763A20232R2085 | 210 mm | 232 mm | ||||
M763A16182R1655 | M16 | 160 mm | 182 mm | |||
M763A16232R1685 | 210 mm | 232 mm | ||||
M763A20182R2055 | M20 | 160 mm | 182 mm | |||
M763A20232R2085 | 210 mm | 232 mm | ||||
M773A16182R1655 | M16 | 160 mm | 182 mm | |||
M773A16232R1685 | 210 mm | 232 mm | ||||
M773A20182R2055 | M20 | 160 mm | 182 mm | |||
M773A20232R2085 | 210 mm | 232 mm |
