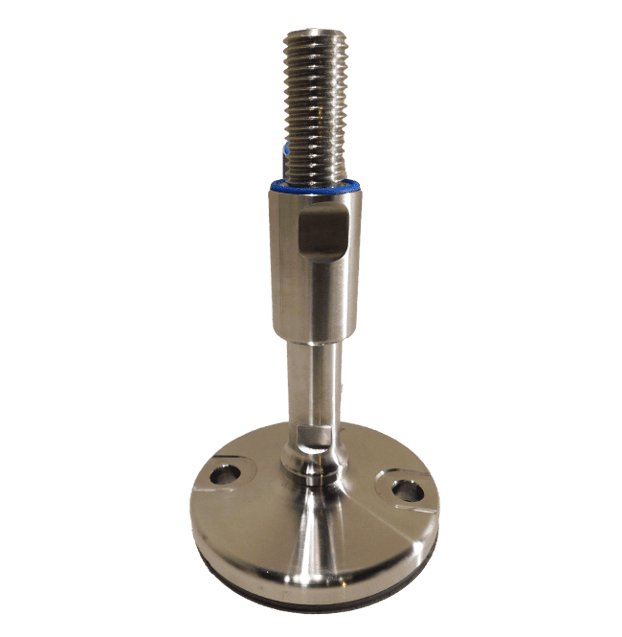

Hygienic Type XH
The XH machine foot is certified according to the 3A hygienic standard: “88-00” and certified according to the EHEDG hygienic standard TYPE EL - CLASS 1. The patented XH machine foot is sealing all moveable parts 100 % hygienically, even if the load on the foot is removed. The design of the XH system reduces the cleaning effort to an absolute minimum. The sleeve covers the thread, and also functions as a nut. The machine foot admits slopes up to 10° of floors and equipment. The XH machine foot is marked with the 3A and EHEDG logo. Instructions of mounting/cleaning, the 3A and EHEDG certificate are sent together with the shipment.
INDUSTRY APPLICATIONS
Product Details
FEATURES
- Constructed from AISI 304 grade stainless
- Elastomeric components are constructed from FDA approved NBR and TPE Santoprene® rubber material
- Sealing washers are constructed from Aramid fiber material
- All materials are considered nontoxic and are non-absorbent
- All exposed metallic surfaces are finished to maximum surface roughness values of 1.6 pm Ra
- Elastomeric components and sealing washers are left as molded with no hand trimming and all surfaces are considered smooth enough to ensure superior cleanability
BENEFITS
Ideal for :
- Dairy
- Brewery
- Pharmaceutical Industry
- Applications with the highest demands for hygiene and cleaning
RESOURCES

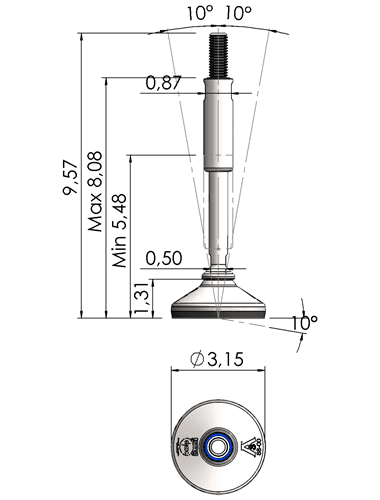

Technical Specification
-
Hygienic standard: 3A / EHEDG, USDA, Standard
-
Total height 9,57 in
-
Max. height 8,08 in
-
Min. height 5,48 in
-
Adjustment 2,59 in
-
Nom. load 15.000 N
-
Nom. pull 4.000 N
-
Thread diameter UNC 5/8-11
-
Foot Plate dia. Ø 3,15 in
-
Anti-slip Rubber Yes
-
Fixing holes None
-
Slope 10°
