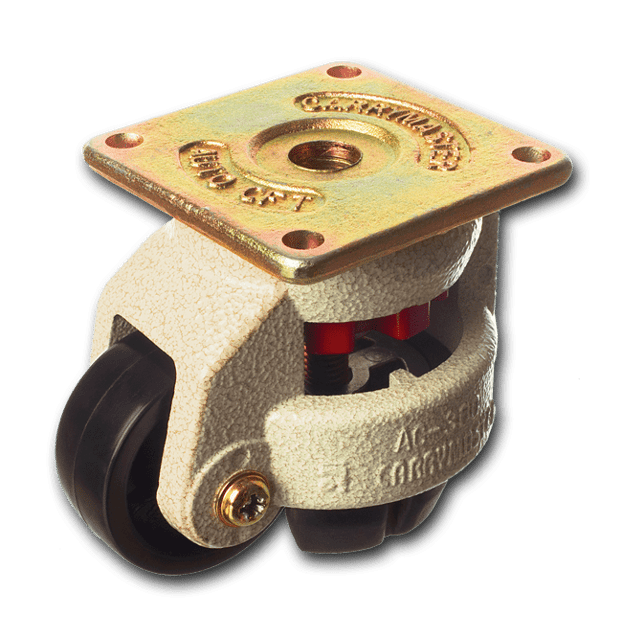

Leveling Casters
Sunnex's Level Caster Product fits every mounting requirement neatly into one package; offering the functionality of three products for the price of one. The Level Caster incorporates a high-grade nylon wheel for easy movement, a mount for precise leveling, and a rubber pad for anti-vibration control.
INDUSTRY APPLICATIONS
Product Details
FEATURES
- Heavy duty caster
- Powder coated cast Iron frame
- Leveling adjustment wheel
BENEFITS
Ideal for :
- Packaging Equipment
- Workstations
- Telecommunications Racks
- Assembly Equipment
- Electronics Manufacturing Equipment
RESOURCES

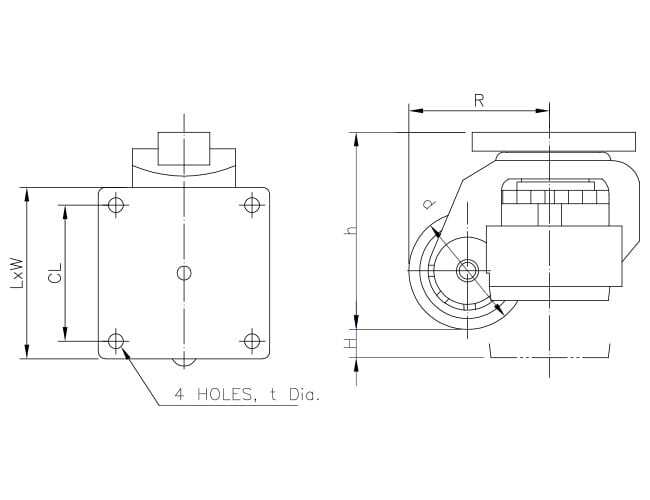

| Plate Mount | ||||||||
|---|---|---|---|---|---|---|---|---|
| Item Number | Type | Load Capacity (lbs) | Height, L (in) | Adjustment, H (in) | Wheel Dia., D (in) | Hole Dia., T (in) | Hole, D (in) | Swivel Radius(R) |
| SLC-200PL | B | 200 | 2.78 | 0.35 | 1.97 | 0.26 | 2.28 | 2.85 |
| SLC-300P | A | 300 | 3.27 | 0.39 | 2.36 | |||
| SLC-400PL | C | 400 | 2.99 | 0.35 | 2.76 | 1.99 | ||
| SLC-600P | A | 600 | 4.02 | 0.59 | 2.48 | 3.28 | ||
| SLC-800PL | C | 800 | 3.74 | 0.51 | 2.83 | 0.35 | 2.42 | |
| SLC-1000P | A | 1000 | 4.88 | 0.71 | 0.43 | 3.52 | ||
| SLC-1300P* | A | 1300 | 4.92 | |||||
| SLC-1800P* | A | 1800 | 5.12 | 0.98 | 3.62 | 0.51 | 4.56 | |
| * Level tool required foradjustment | ||||||||

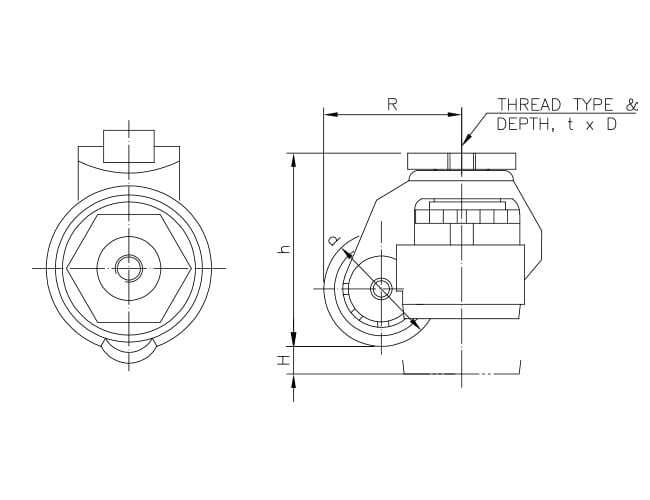

| Stud Mount | ||||||||
|---|---|---|---|---|---|---|---|---|
| Item Number | Type | Load Capacity (lbs) | Height, L (in) | Adjustment, H (in) | Wheel Dia., D (in) | Hole Dia., T (in) | Hole, D (in) | Swivel Radius(R) |
| SLC-50S | A | 50 | 2.87 | 0.39 | 1.65 | M8-1.25 | 0.47 | 2.13 |
| SLC-200SL | B | 200 | 2.78 | 0.35 | 1.97 | M12-1.75 | 0.59 | 2.85 |
| SLC-300S | A | 300 | 3.27 | 0.39 | 2.36 | |||
| SLC-600S | A | 600 | 4.02 | 0.59 | 2.48 | 3.28 | ||
| SLC-1000S | A | 1000 | 4.88 | 0.71 | 2.83 | M16-2.0 | 0.63 | 3.52 |
| SLC-1300S* | A | 1300 | 4.92 | |||||
| * Level tool required for adjustment | ||||||||
