LL-Series

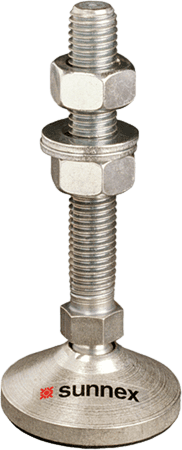

Sunnex LL Leveling Element for loads of up to 4,400 Lbs. The Sunnex LL Leveling element is ideal for mid-range load requirements. The solid steel articulated ball and socket design of the swivel connection provides a low friction interface for equipment to floor. Simple and standard design allows for quick interchangeability with many other swivel level mounts.
INDUSTRY APPLICATIONS
Product Details
FEATURES
- Solid steel, property class S.8, galvanized
- Anti-slip pad D=1 mm in nitrile rubber
- Hexagon nut to ISO 4035, galvanized steel
- Swivel foot with screw
BENEFITS

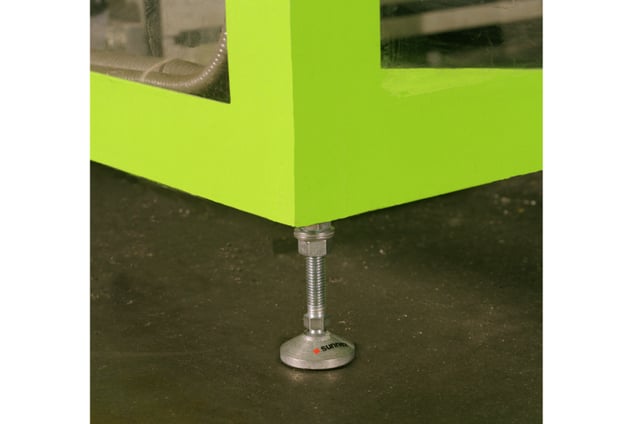

Ideal for :
- Equipment benches
- Drill presses
- Blast stations
RESOURCES

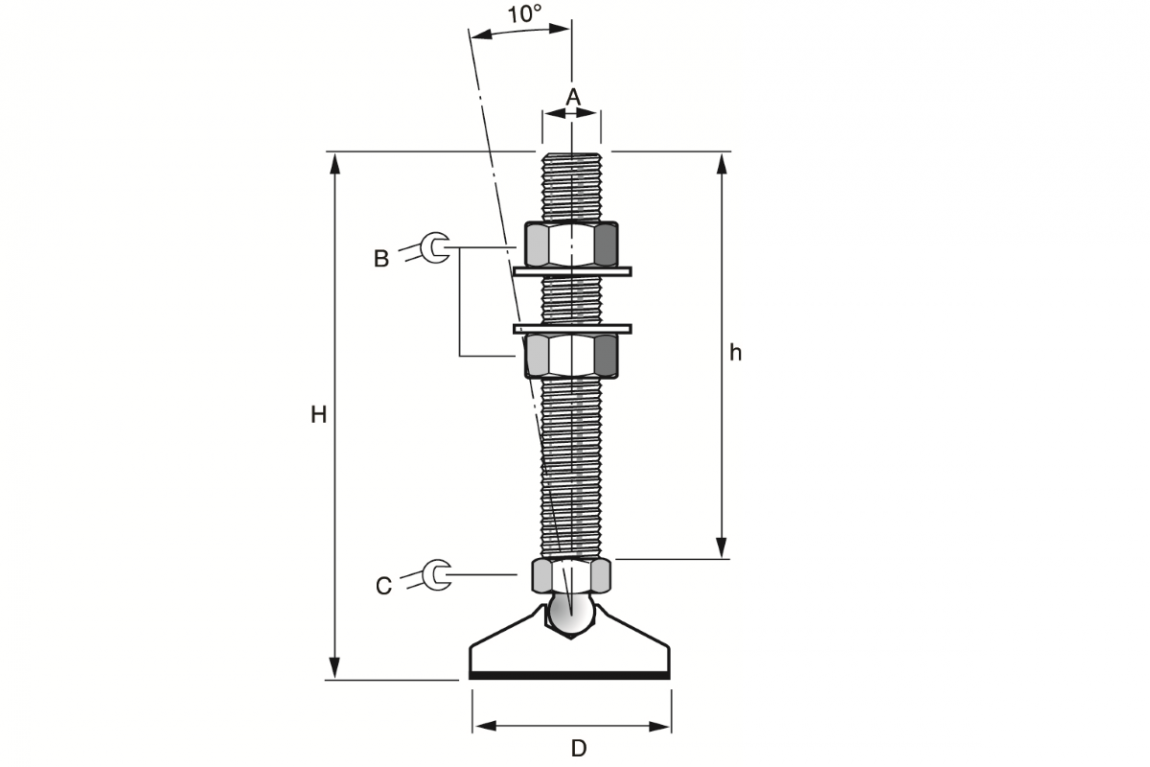

| Item number | Load Capacity(lbs) | Base Height(in) | Base Diameter, D (in) | Thread, d, L (in) |
|---|---|---|---|---|
| LL 10 | 2,000 | 1.05 | 1.25 | M12 – 1.75 x 75 |
| LL 12 | 2,500 | 1.15 | 1.75 | |
| LL 20 | 4,400 | 2.3 | M14 – 2.0 x 100 |
