LN/LS/LP-Series

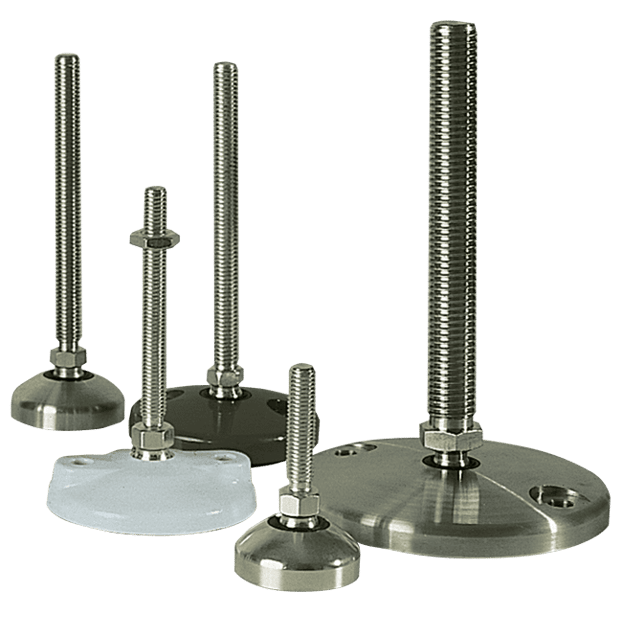

The Sunnex LN Series of nylon leveling mounts are well equipped for many applications. These economical mounts provide fast, easy, and precise leveling, and are available with a variety of mounting options including free-standing, bolt-down and anti-skid pads. All Sunnex leveling mounts are modular in design, consisting of two parts: a base and a threaded bolt. These base units can be combined with any thread type, size and material (Stainless Steel or Zinc Plated), allowing you to specify the correct configuration for your application. The swivel mounts are specifically designed to provide a smooth, angular movement, which accommodates variations in floor elevations. The swivel interface uses a non-galling precision ball and socket joint for full range motion over 15 degrees.
INDUSTRY APPLICATIONS

Product Details

FEATURES
  • Fast, easy, and precise leveling of all
  • types of machines and equipment
  • Wide variety of configurations
  • Self-aligning without sacrificing stability
  • No cementing or bolting needed
  • Electrically non-conductive
  • Flexible, non-scuff or scratch-resistant
  •  Cost-effective options
  • +/– 20° range of motion available
BENEFITS
Ideal for :
  • Electronics Equipment
  • Medical Equipment
  • Packaging Machinery
  • Conveyors
  • Industrial Scales
  •
RESOURCES

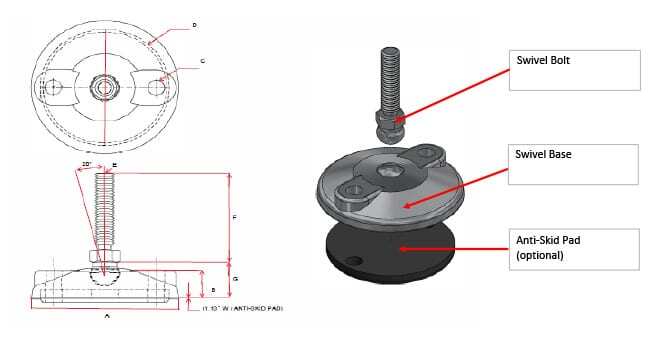

ln-ls-lp-series drawing
PICTURE PART NO. DESCRIPTION
Swivel Base, Standard, Non Skid, Plastic  SXXTNY Swivel Base, Standard, Non Skid, Plastic
Swivel Base, Standard, Anti‐Skid, Plastic  SXXTAY Swivel Base, Standard, Anti‐Skid, Plastic

Swivel Base, Standard, Non Skid, Powder Coat  SXXTNP Swivel Base, Standard, Non Skid, Powder Coat
Swivel Base, Standard, Anti-Skid, Powder Coat  SXXTAP Swivel Base, Standard, Anti‐Skid, Powder Coat

Swivel Base, Standard, Non Skid, Stainless  SXXTNL Swivel Base, Standard, Non Skid, Stainless
Swivel Base, Standard, Anti-Skid, Stainless  SXXTAL Swivel Base, Standard, Anti‐Skid, Stainless

XX - Base Diameter (mm); P - Power Coat; Y - Plastic / Nylon; S - Swivel; N - Non Skid (no pad);
A - Anti Skid (rubber pad); T - Standard (non bolt hole); L - Stainless; B - Bolt Down

Swivel Base - Anchoring Holes

PICTURE PART NO. DESCRIPTION
Swivel Base, Bolt Down, Non Skid, Plastic  SXXBNY Swivel Base, Bolt Down, Non Skid, Plastic
Swivel Base, Bolt Down, Anti-Skid, Plastic SXXBAY Swivel Base, Bolt Down, Anti‐Skid, Plastic

Swivel Base, Bolt Down, Non Skid, Powder Coat  SXXBNP Swivel Base, Bolt Down, Non Skid, Powder Coat
Swivel Base, Bolt Down, Anti-Skid, Powder Coat  SXXBAP Swivel Base, Bolt Down, Anti‐Skid, Powder Coat

Swivel Base, Bolt Down, Non Skid, Stainless  SXXBNL Swivel Base, Bolt Down, Non Skid, Stainless
Swivel Base, Bolt Down, Anti-Skid, Stainless  SXXBAL Swivel Base, Bolt Down, Anti‐Skid, Stainless

XX - Base Diameter (mm); P - Power Coat; Y - Plastic / Nylon; S - Swivel; N - Non Skid (no pad);
A - Anti Skid (rubber pad); T - Standard (non bolt hole); L - Stainless; B - Bolt Down

Swivel Base - No Anchoring Holes

Sizes

Diameter

Base Height

Capacity

Plastic
(TNY) + (TAY)

Powder Coat
(TNP) + (TAP)

Stainless
(TNL) + (TAL)

S30

1.18

0.71

650

4,400

4,400

S40

1.57

900

5,500

5,500

S50

1.97

1,000

6,500

6,500

S60

2.36

1,300

6,800

6,800

S80

3.15

1,500

7,200

7,200

S100

3.94

1,700

7,600

7,600

S120

4.72

1,900

7,800

7,800



Swivel Base - Anchoring Holes

Sizes

Diameter

Base Height

Capacity

Hole Diameter

Hole CTR

Plastic
(BNY) + (BAY)

Powder Coat
(BNP) + (BAP)

Stainless
(BNL) + (BAL)

S80

3.15

0.71

1,500

7,200

7,200

0.35

2.17

S100

3.94

0.71

1,700

7,600

7,600

2.88

S120

4.72

0.71

1,900

7,800

7,800

Swivel Bolts  (Inches)



Swivel Bolts  (Metric)

Thread Size

Thread Bolt Length

Max Height

L
Stainless

Z
Zinc



Thread Size

Thread Bolt Length

Max Height

L
Stainless

Z
Zinc

3/8 - 16

4

1.2

S3/8X4L

S3/8X4Z



M10-1.5

40

1.2

SM10X40L

SM10X40Z

3/8 - 16

6

S3/8X6L

S3/8X6Z



M10-1.5

100

SM10X100L

SM10X100Z

1/2 - 13

2.5

S1/2X2.5L

S1/2X2.5Z



M12-1.75

45

SM12X45L

SM12X45Z

1/2 - 13

3.5

S1/2X3.5L

S1/2X3.5Z



M12-1.75

100

SM12X100L

SM12X100

1/2 - 13

4

S1/2X4L

S1/2X4Z



M16-2.0

80

1.3

SM16X80L

SM16X80Z

1/2 - 13

6

S1/2X6L

S1/2X6Z



M16-2.0

100

SM16X100L

SM16X100Z

5/8 - 11

2.5

1.3

S5/8X2.5L

S5/8X2.5Z



M16-2.0

150

SM16X150L

SM16X150Z

5/8 - 11

4

S5/8X4L

S5/8X4Z



5/8 - 11

6

S5/8X6L

S5/8X6Z



5/8 - 11

6.5

S5/8X6.5L

S5/8X6.5Z



3/4 - 10

4

S3/4X4L

S3/4X4Z



3/4 - 10

6

S3/4X6L

S3/4X6Z



3/4 - 10

6.5

S3/4X6.5L

S3/4X6.5Z



3/4 - 10

9.5

S3/4X9.5L

S3/4X9.5Z
