Type G

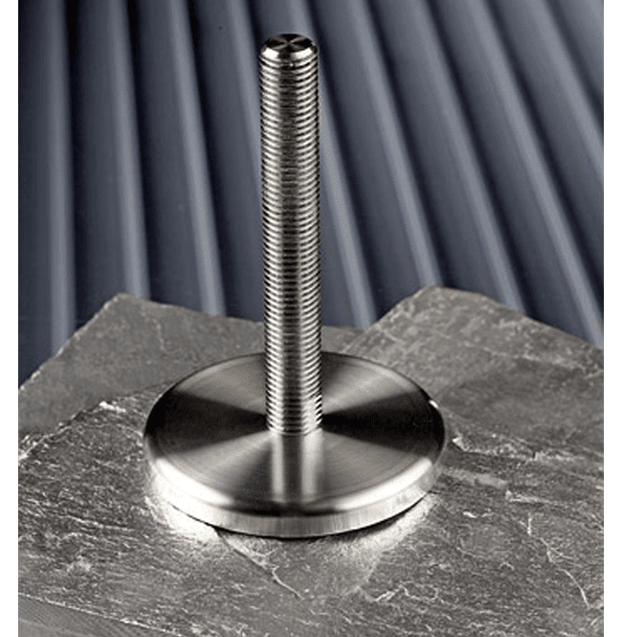

The Sunnex Type G High Load Capacity Stainless Steel Mount Suitable Thermal and Contraction Exposure
INDUSTRY APPLICATIONS

Product Details

FEATURES
  • Solid fully threaded leveling feet
  • Smoothly rounded design for ease of cleaning
  • Available with anti-slip rubber mounts
  • 316 is available upon request
BENEFITS
  • Made from high-quality stainless steel
  • Corrosion resistance and longevity
  •  Perfect for heavy machinery and equipment
  •  Designed for easy adjustment and stability
RESOURCES

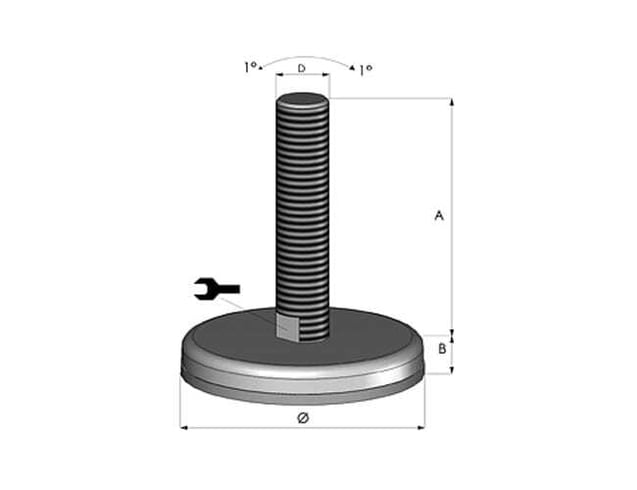

Item # Load Cap W Base Diameter Ø Thread Type D Stud Length A Base Ht B Overall Ht
G110584 13,300 lbs. 4.33" 5/8" 4" .47" 4.67"
G110586 6" 6.47"
G110344 3/4" 4" 4.67"
G110346 6" 6.47"

Item # Load Cap W Base Diameter Ø Thread Type D Stud Length A Base Ht B Overall Ht
G11016150 7,000 kg 110 mm M16 147 mm 12 mm 159 mm
G11016180 180 mm 192 mm
G11020150 M20 147 mm 159 mm
G11020180 180 mm 192 mm

Item # Load Cap W Base Diameter Ø Thread Type D Stud Length A Base Ht B Overall Ht
G150586 13,300 lbs. 5.91" 5/8" 6 " .47" 6.47"
G150588 8 " 8.47"
G150346 3/4" 6 " 6.47"
G150348 8 " 8.47"

Item # Load Cap W Base Diameter Ø Thread Type D Stud Length A Base Ht B Overall Ht
G15016150 10,000 kg 150 mm M16 147 mm 12 mm 159 mm
G15016180 180 mm 192 mm
G15020150 M20 147 mm 159 mm
G15020180 180 mm 192 mm
G15024150 M24 147 mm 159 mm
G15024180 180 mm 192 mm

Item # Load Cap W Base Diameter Ø Thread Type D Stud Length A Base Ht B Overall Ht
G90584 13,300 lbs. 3.54" 5/8" 4" .47" 4.47"
G90586 6" 6.47"
G90344 3/4" 4" 4.47"
G90346 6" 6.47"
G90124 1/2" 4" 4.47"
G90126 6" 6.47"

Item # Load Cap W Base Diameter Ø Thread Type D Stud Length A Base Ht B Overall Ht
G9012150 7,000 kg 90 mm M12 147 mm 12 mm 159 mm
G9012180 180 mm 192 mm
G9016150 M16 147 mm 159 mm
G9016180 180 mm 192 mm
G9020150 M20 147 mm 159 mm
G9010180 180 mm 192 mm
