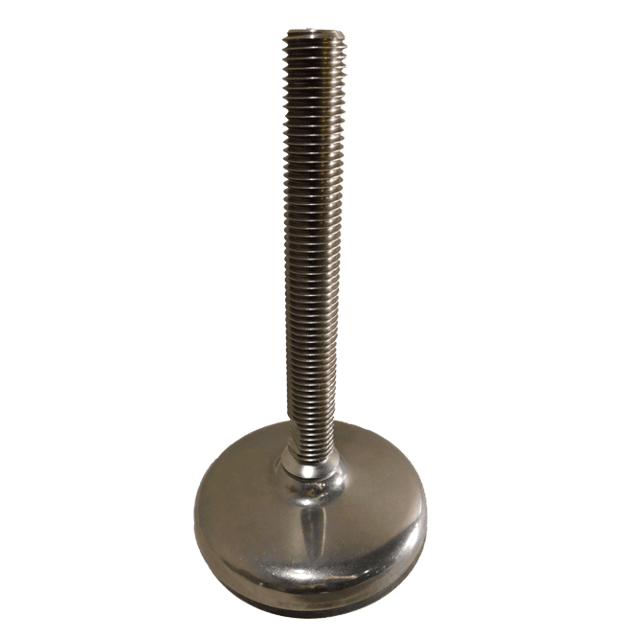

Type H
These newly approved FDA and USDA stainless mounts meet the strict criteria and all regulation requirements for food and drug processing equipment. A special rubber is vulcanized to the housing producing a completely hygienic seal. The ANSI 304 stainless steel provides high corrosion resistance. The full range of motion from a 10 degree pivot provides secure footing and complete vibration control.
INDUSTRY APPLICATIONS
Product Details
FEATURES
- USDA certified and is consequently approved for demanding sanitary applications
- Its design is ultra-hygienic and easy to clean, and the transition between foot plate and thread is sealed
- The machine foot admits slopes up to 10 degrees of floors and equipment
- Wide temperature range with 304LSS: -2- to 100C
- ANSI 316 stainless steel is available upon request
BENEFITS
- Thread casing functions as a lock-nut
- 304 SS for high chemical resistance*
- Wide temperature range -20 to 100 C
- 10 degree swivel
RESOURCES

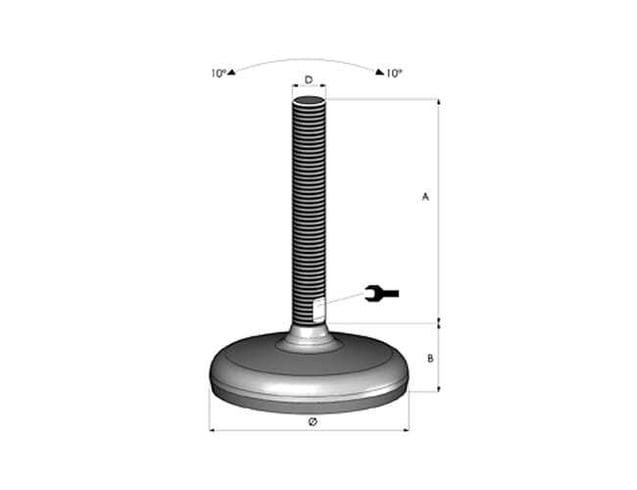

Item # | Load Cap W | Base Diameter Ø | Thread Type D | Stud Length A | Base Ht B | Overall Ht |
---|---|---|---|---|---|---|
H60124 | 1,100 lbs. | 2.36" | 1/2" | 4" | 1.22" | 5.22" |
H60126 | 6" | 7.22" | ||||
H60584 | 5/8" | 4" | 5.22" | |||
H60586 | 6" | 7.22" | ||||
H60344 | 3/4" | 4" | 5.22" | |||
H60346 | 6" | 7.22" |
