Type J

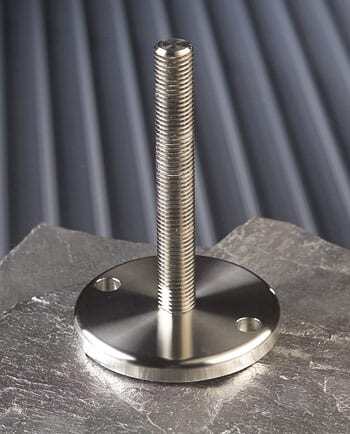

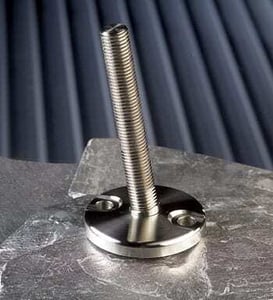

The Sunnex Type J is a High Load Capacity Stainless Steel Mount with 2 Fixing Holes. Smoothly rounded design for ease of cleaning. Also available with anti-slip rubber.
INDUSTRY APPLICATIONS
Product Details
FEATURES
- Available in a wide variety of sized for many applications
- Made with high quality 304 Stainless Steel
- Metric thread type is available
- 316 is available upon request
BENEFITS
- Solid leveling feet ideal for heavy machinery and equipment,
- Sturdy and durable
- fully threaded
- 2 fixing holes
RESOURCES

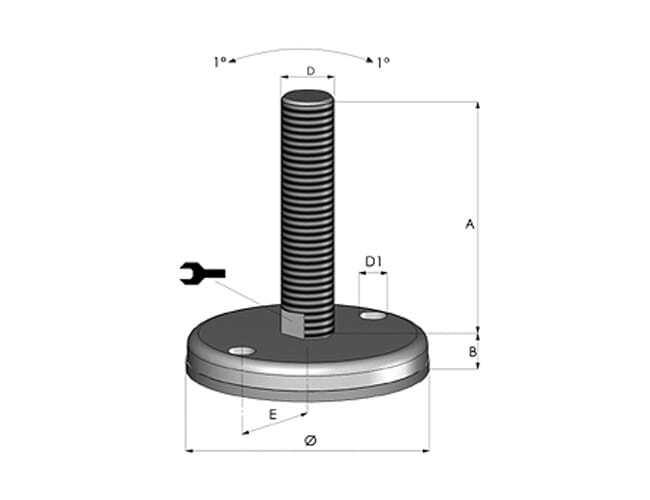

| Item # | Load Cap W | Base Diameter Ø | Thread Type D | Stud Length A | Base Ht B | Overall Ht |
|---|---|---|---|---|---|---|
| J90124 | 13,300 lbs. | 3.54" | 1/2" | 4" | .47" | 4.47" |
| J90126 | 6" | 6.47" | ||||
| J90344 | 3/4" | 4" | 4.47" | |||
| J90346 | 6" | 6.47" |
| tem # | Load Cap W | Base Diameter Ø | Thread Type D | Stud Length A | Base Ht B | Overall Ht |
|---|---|---|---|---|---|---|
| J9012150 | 7,000 kg | 90 mm | M12 | 147 mm | 17 mm | 164 mm |
| J9012180 | 180 mm | 197 mm | ||||
| J9016150 | M16 | 147 mm | 164 mm | |||
| J9016180 | 180 mm | 197 mm | ||||
| J9020150 | M20 | 147 mm | 164 mm | |||
| J9020180 | 180 mm | 197 mm |
| Item # | Load Cap W | Base Diameter Ø | Thread Type D | Stud Length | Base Ht B | Overall Ht |
|---|---|---|---|---|---|---|
| J110124 | 13,300 lbs. | 4.33" | 1/2" | 4" | .47" | 4.47" |
| J110126 | 6" | 6.47" | ||||
| J110584 | 5/8" | 4" | 4.47" | |||
| J110586 | 6" | 6.47" | ||||
| J110344 | 3/4" | 4" | 4.47" | |||
| J110346 | 6" | 6.47" |
| Item # | Load Cap W | Base Diameter Ø | Thread Type D | Stud Length A | Base Ht B | Overall Ht |
|---|---|---|---|---|---|---|
| J11016150 | 7,000 kg | 110 mm | M16 | 147 mm | 17 mm | 164 mm |
| J11016180 | 180 mm | 197 mm | ||||
| J11020150 | M20 | 147 mm | 164 mm | |||
| J11020180 | 180 mm | 197 mm |
| Item # | Load Cap W | Base Diameter Ø | Thread Type D | Stud Length A | Base Ht B | Overall Ht |
|---|---|---|---|---|---|---|
| J150344 | 20,000 lbs. | 5.91" | 3/4" | 4" | .47" | 4.47" |
| J150346 | 6" | 6.47" | ||||
| J150784 | 7/8" | 4" | 4.47" | |||
| J150786 | 6" | 6.47" |
| Item # | Load Cap W | Base Diameter Ø | Thread Type D | Stud Length A | Base Ht B | Overall Ht |
|---|---|---|---|---|---|---|
| J15020150 | 10,000 kg | 150 mm | M20 | 147 mm | 12 mm | 159 mm |
| J15020180 | 180 mm | 192 mm | ||||
| J15024150 | M24 | 147 mm | 159 mm | |||
| J15024180 | 180 mm | 192 mm |
