Type KG

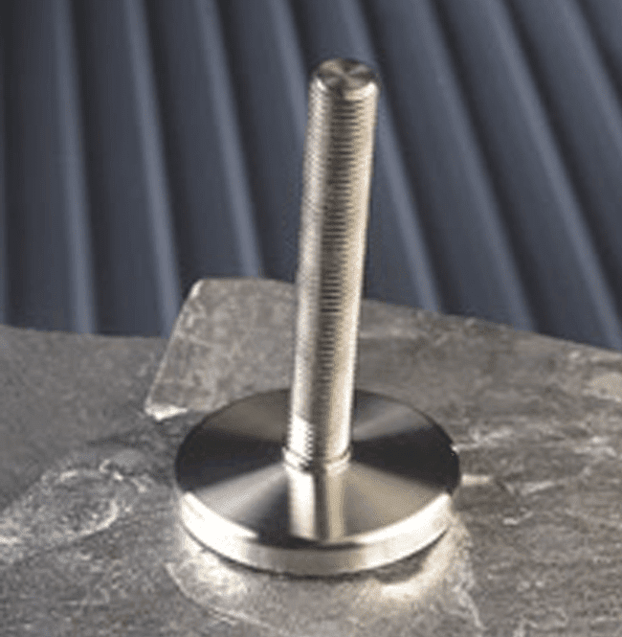

The Sunnex Type KG is a High Load Capacity Stainless Steel Mount with solid base
INDUSTRY APPLICATIONS
Product Details
FEATURES
- Suitable for machines exposed to thermal expansion and contraction
- Admits up to 8" slopes on floors and equipment
- Smoothly rounded design for ease of cleaning
- Available with anti-slip rubber mounts
- 316 is available upon request
BENEFITS
- High Load Capacity
- Ease of cleaning
- Ideal for ovens and freezers applications
RESOURCES
| US CHART | ||||||
|---|---|---|---|---|---|---|

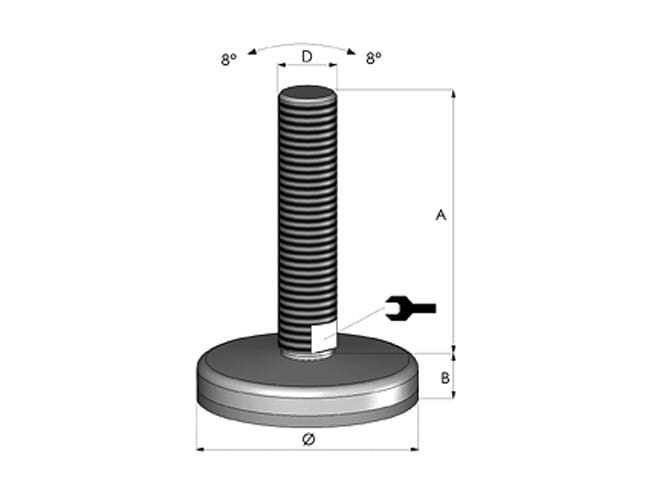

| Item # | Load Cap W | Base Diameter Ø | Thread Type D | Stud Length A | Base Ht B | Overall Ht |
| KG90126 | 15,400 lbs. | 3.54" | 1/2" | 6" | .67 | 6.67 |
| KG90344 | 4" | 4.67 | ||||
| KG90586 | 5/8" | 6" | 6.67 | |||
| KG90346 | 3/4" | |||||
| KG90584 | 4" | 4.67 | ||||
| KG90124 | 1" | |||||
| KG110584 | 4.33" | 5/8" | 4" | |||
| KG110586 | 6" | 6.67 | ||||
| KG110344 | 3/4" | 4" | 4.67 | |||
| KG110346 | 6" | 6.67 | ||||
| KG150584 | 26,400 lbs | 5.91" | 5/8" | 4" | .79 | 4.79 |
| KG150586 | 6" | 6.79 | ||||
| KG150344 | 3/4" | 4" | 4.79 | |||
| KG150346 | 6" | 6.79 | ||||
| METRIC CHART | ||||||
|---|---|---|---|---|---|---|
| Item # | Load Cap W | Base Diameter Ø | Thread Type D | Stud Length A | Base Ht B | Overall Ht |
| KG9012150 | 7,000 kg | 90 mm | M12 | 147 mm | 17 mm | 164 mm |
| KG9012180 | 180 mm | 197 mm | ||||
| KG9016150 | M16 | 147 mm | 164 mm | |||
| KG9016180 | 180 mm | 197 mm | ||||
| KG9020150 | M20 | 147 mm | 164 mm | |||
| KG9020180 | 180 mm | 197 mm | ||||
| KG11016150 | 110 mm | M16 | 147 mm | 164 mm | ||
| KG11016180 | 180 mm | 197 mm | ||||
| KG11020150 | M20 | 147 mm | 164 mm | |||
| KG11020180 | 180 mm | 197 mm | ||||
| KG15016150 | 12,000 kg | 150 mm | M16 | 147 mm | 20 mm | 167 mm |
| KG15016180 | 180 mm | 200 mm | ||||
| KG15020150 | M20 | 147 mm | 167 mm | |||
| KG15020180 | 180 mm | 200 mm | ||||
