Type KJ

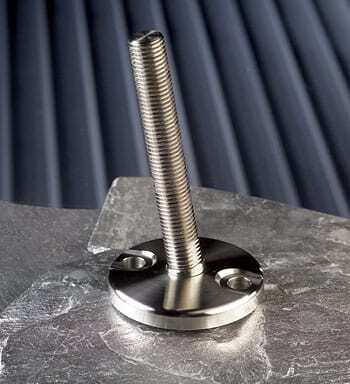

The Sunnex Type KJ is a High Load Capacity Stainless Steel Mount with bolt holes
INDUSTRY APPLICATIONS
Product Details
FEATURES
- This high load capacity model has 2 fixing holes for easy fastening to any equipment
- Admits up to 8"slopes on floors and equipment
- Smoothly rounded design for ease of cleaning
- Available with anti-slip rubber mounts
- 316 is available upon request
RESOURCES
| US CHART | ||||||
|---|---|---|---|---|---|---|

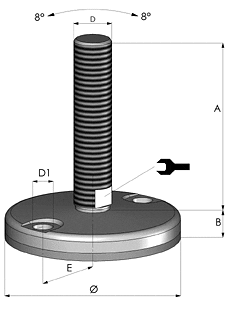

| Item # | Load Cap W | Base Diameter Ø | Thread Type D | Stud Length A | Base Ht B | Overall Ht |
| KJ90124 | 15,400 lbs | 3.54" | 1/2" | 4" | .67" | 4.67" |
| KJ90126 | 6" | 6.67" | ||||
| KJ90344 | 3/4" | 4" | 4.67" | |||
| KJ90346 | 6" | 6.67" | ||||
| KJ110124 | 4.33" | 1/2" | 4" | 4.67" | ||
| KJ110126 | 6" | 6.67" | ||||
| KJ110344 | 3/4" | 4" | 4.67" | |||
| KJ110346 | 6" | 6.67" | ||||
| KJ150344 | 26,400 lbs | 5.91" | 4" | 4.67" | ||
| KJ150346 | 6" | 6.67" | ||||
| KJ150784 | 7/8" | 4" | 4.67" | |||
| KJ150786 | 6" | 6.67" | ||||
| METRICS CHART | ||||||
|---|---|---|---|---|---|---|
| Item # | Load Cap W | Base Diameter Ø | Thread Type D | Stud Length A | Base Ht B | Overall Ht |
| KJ9016150 | 7,000 kg | 90 mm | M16 | 147 mm | 17 mm | 164 mm |
| KJ9016180 | 180 mm | 197 mm | ||||
| KJ9020150 | M20 | 147 mm | 164 mm | |||
| KJ9020180 | 180 mm | 197 mm | ||||
| KJ11016150 | 110 mm | M16 | 147 mm | 164 mm | ||
| KJ11016180 | 180 mm | 197 mm | ||||
| KJ11020150 | M20 | 147 mm | 164 mm | |||
| KJ11020180 | 180 mm | 197 mm | ||||
| KJ15020150 | 12,000 kg | 150 mm | 147 mm | 164 mm | ||
| KJ15020180 | 180 mm | 197 mm | ||||
| KJ15024150 | M24 | 147 mm | 164 mm | |||
| KJ15024180 | 180 mm | 197 mm | ||||
