Type LCHX

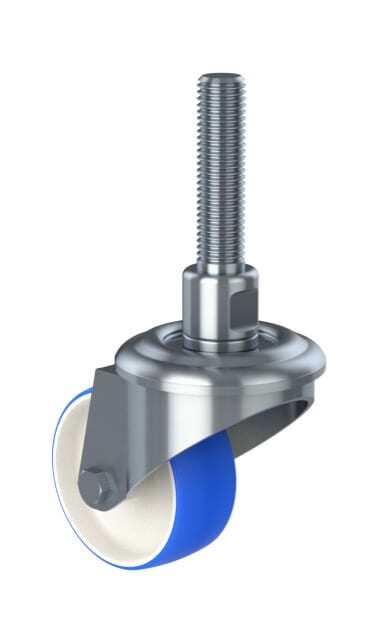

The design and patent protected LCHX hygienic leveling swivel castor is the optimal choice for machinery and equipment in diverse sanitary production environments.
INDUSTRY APPLICATIONS

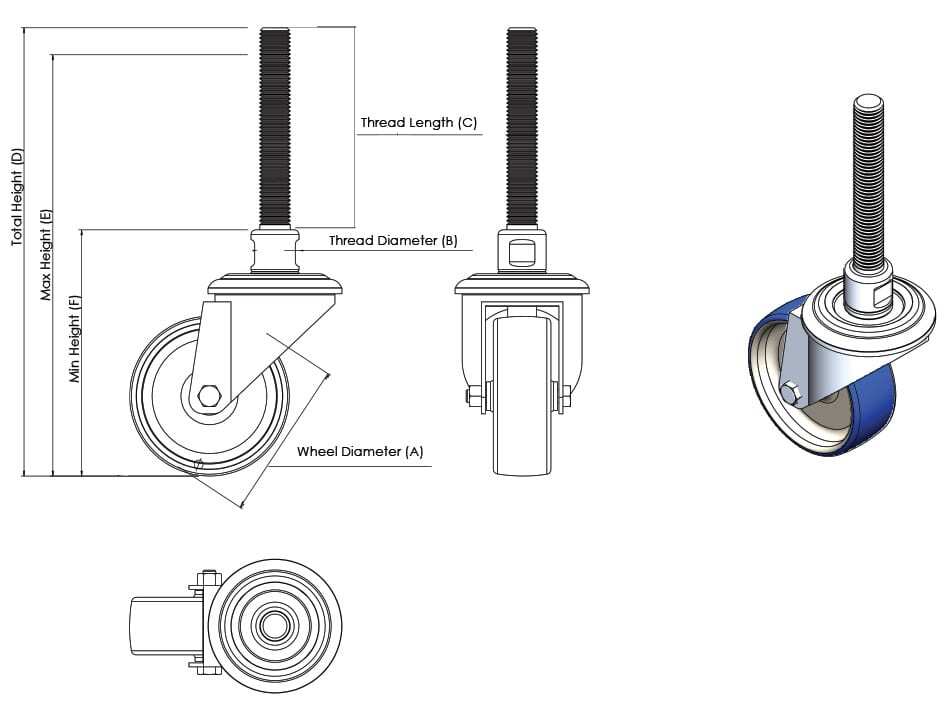

Product Details
| Wheel Diameter (A) |
Thread Diameter (B) |
Thread length ( C) |
Total Height (D) |
Max Height ( E) |
Min Height (F) |
Caster Item # (G) |
| 80 | 3/4 | 3.0" | 7.2" | 6.6" | 5.3" | LCHX080-34-3 |
| 4.0" | 8.3" | 7.6" | LCHX080-34-4 | |||
| 6.0" | 10.2" | 9.6" | LCHX080-34-6 | |||
| 8.0" | 12.2" | 11.6" | LCHX080-34-8 | |||
| 10.0" | 14.3" | 13.6" | LCHX080-34-10 | |||
| 12.0" | 16.3" | 15.6" | LCHX080-34-12 | |||
| 1.0 | 3.0" | 7.2" | 6.4" | LCHX080-10-3 | ||
| 4.0" | 8.3" | 7.4" | LCHX080-10-4 | |||
| 6.0" | 10.2" | 9.4" | LCHX080-10-6 | |||
| 8.0" | 12.2" | 11.4" | LCHX080-10-8 | |||
| 10.0" | 14.3" | 13.3" | LCHX080-10-10 | |||
| 12.0" | 16.3" | 15.4" | LCHX080-10-12 | |||
| 100 | 3/4 | 3.0" | 8.0" | 7.4" | 6.1" | LCHX100-34-3 |
| 4.0" | 9.1" | 8.4" | LCHX100-34-4 | |||
| 6.0" | 11.0" | 10.4" | LCHX100-34-6 | |||
| 8.0" | 13.0" | 12.4" | LCHX100-34-8 | |||
| 10.0" | 15.0" | 14.4" | LCHX100-34-10 | |||
| 12.0" | 17.0" | 16.4" | LCHX100-34-12 | |||
| 1.0 | 3.0" | 8.0" | 7.2" | LCHX100-10-3 | ||
| 4.0" | 9.1" | 8.1" | LCHX100-10-4 | |||
| 6.0" | 11.0" | 10.2" | LCHX100-10-6 | |||
| 8.0" | 13.0" | 12.2" | LCHX100-10-8 | |||
| 10.0" | 15.0" | 14.1" | LCHX100-10-10 | |||
| 12.0" | 17.0" | 16.1" | LCHX100-10-12 | |||
| 125 | 3/4 | 3.0" | 9.1" | 8.4" | 7.1" | LCHX125-34-3 |
| 4.0" | 10.1" | 9.4" | LCHX125-34-4 | |||
| 6.0" | 12.1" | 11.5" | LCHX125-34-6 | |||
| 8.0" | 14.1" | 13.4" | LCHX125-34-8 | |||
| 10.0" | 16.1" | 15.4" | LCHX125-34-10 | |||
| 12.0" | 18.1" | 17.4" | LCHX125-34-12 | |||
| 1.0 | 3.0" | 9.1" | 8.2" | LCHX125-10-3 | ||
| 4.0" | 10.1" | 9.2" | LCHX125-10-4 | |||
| 6.0" | 12.1" | 11.2" | LCHX125-10-6 | |||
| 8.0" | 14.1" | 13.2" | LCHX125-10-8 | |||
| 10.0" | 16.1" | 15.2" | LCHX125-10-10 | |||
| 12.0" | 18.1" | 17.2" | LCHX125-10-12 |
