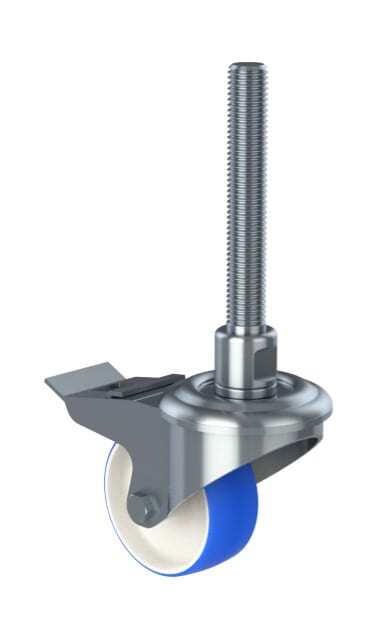

Type LCHXB
The design and patent protected LCHXB hygienic leveling swivel castor with brake, is the optimal choice for machinery and equipment in diverse sanitary production environments. The LCHXB is equipped with a horizontal and vertical brake, which totally locks the position of the castor.
INDUSTRY APPLICATIONS

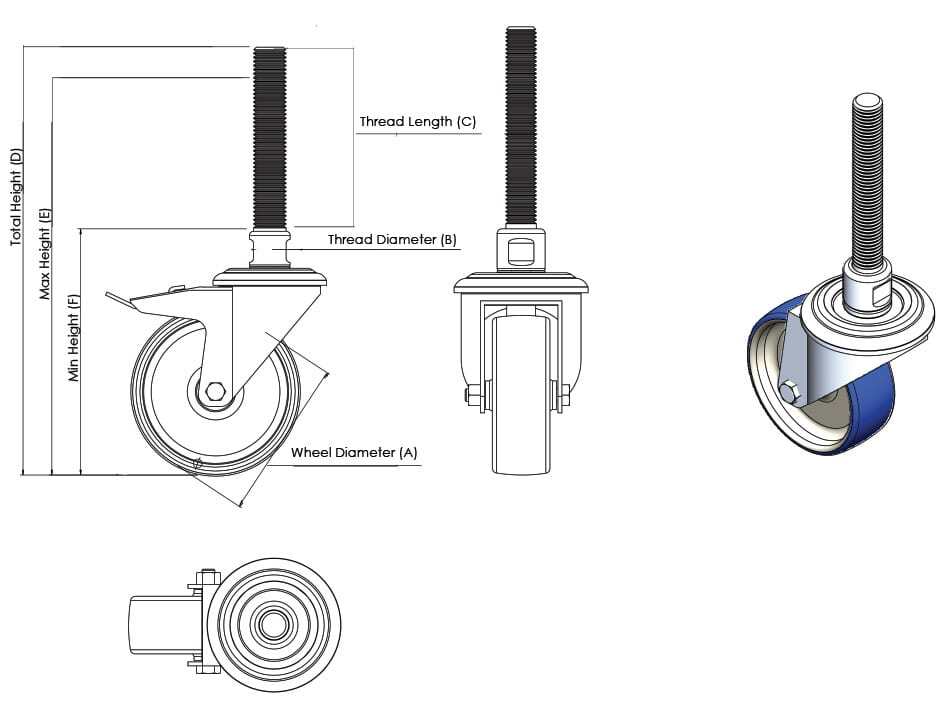

Product Details
| Wheel Diameter (A) |
Thread Diameter (B) |
Thread length ( C) |
Total Height (D) |
Max Height ( E) |
Min Height (F) |
Caster Item # (G) |
| 80 | 3/4 | 3.0" | 7.2" | 6.6" | 5.3" | LCHXB080-34-3 |
| 4.0" | 8.3" | 7.6" | LCHXB080-34-4 | |||
| 6.0" | 10.2" | 9.6" | LCHXB080-34-6 | |||
| 8.0" | 12.2" | 11.6" | LCHXB080-34-8 | |||
| 10.0" | 14.3" | 13.6" | LCHXB080-34-10 | |||
| 12.0" | 16.3" | 15.6" | LCHXB080-34-12 | |||
| 1.0 | 3.0" | 7.2" | 6.4" | LCHXB080-10-3 | ||
| 4.0" | 8.3" | 7.4" | LCHXB080-10-4 | |||
| 6.0" | 10.2" | 9.4" | LCHXB080-10-6 | |||
| 8.0" | 12.2" | 11.4" | LCHXB080-10-8 | |||
| 10.0" | 14.3" | 13.3" | LCHXB080-10-10 | |||
| 12.0" | 16.3" | 15.4" | LCHXB080-10-12 | |||
| 100 | 3/4 | 3.0" | 8.0" | 7.4" | 6.1" | LCHXB100-34-3 |
| 4.0" | 9.1" | 8.4" | LCHXB100-34-4 | |||
| 6.0" | 11.0" | 10.4" | LCHXB100-34-6 | |||
| 8.0" | 13.0" | 12.4" | LCHXB100-34-8 | |||
| 10.0" | 15.0" | 14.4" | LCHXB100-34-10 | |||
| 12.0" | 17.0" | 16.4" | LCHXB100-34-12 | |||
| 1.0 | 3.0" | 8.0" | 7.2" | LCHXB100-10-3 | ||
| 4.0" | 9.1" | 8.1" | LCHXB100-10-4 | |||
| 6.0" | 11.0" | 10.2" | LCHXB100-10-6 | |||
| 8.0" | 13.0" | 12.2" | LCHXB100-10-8 | |||
| 10.0" | 15.0" | 14.1" | LCHXB100-10-10 | |||
| 12.0" | 17.0" | 16.1" | LCHXB100-10-12 | |||
| 125 | 3/4 | 3.0" | 9.1" | 8.4" | 7.1" | LCHXB125-34-3 |
| 4.0" | 10.1" | 9.4" | LCHXB125-34-4 | |||
| 6.0" | 12.1" | 11.5" | LCHXB125-34-6 | |||
| 8.0" | 14.1" | 13.4" | LCHXB125-34-8 | |||
| 10.0" | 16.1" | 15.4" | LCHXB125-34-10 | |||
| 12.0" | 18.1" | 17.4" | LCHXB125-34-12 | |||
| 1.0 | 3.0" | 9.1" | 8.2" | LCHXB125-10-3 | ||
| 4.0" | 10.1" | 9.2" | LCHXB125-10-4 | |||
| 6.0" | 12.1" | 11.2" | LCHXB125-10-6 | |||
| 8.0" | 14.1" | 13.2" | LCHXB125-10-8 | |||
| 10.0" | 16.1" | 15.2" | LCHXB125-10-10 | |||
| 12.0" | 18.1" | 17.2" | LCHXB125-10-12 |
