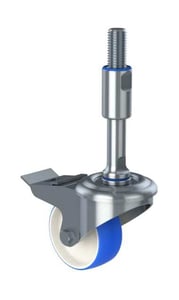

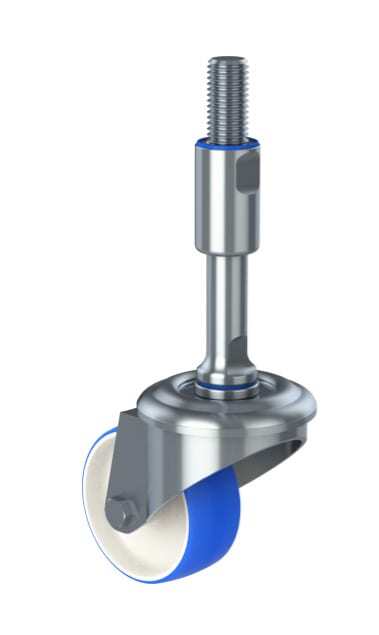

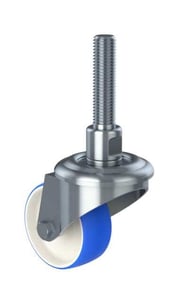

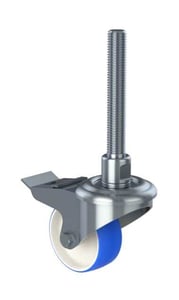

Type LCXH
The design and patent protected LCXH hygienic leveling swivel castor is the optimal choice for machinery and equipment in diverse sanitary production environments. Spindle parts are 100% hygienically sealed with blue sealings detectable by scanning systems.
INDUSTRY APPLICATIONS
Product Details

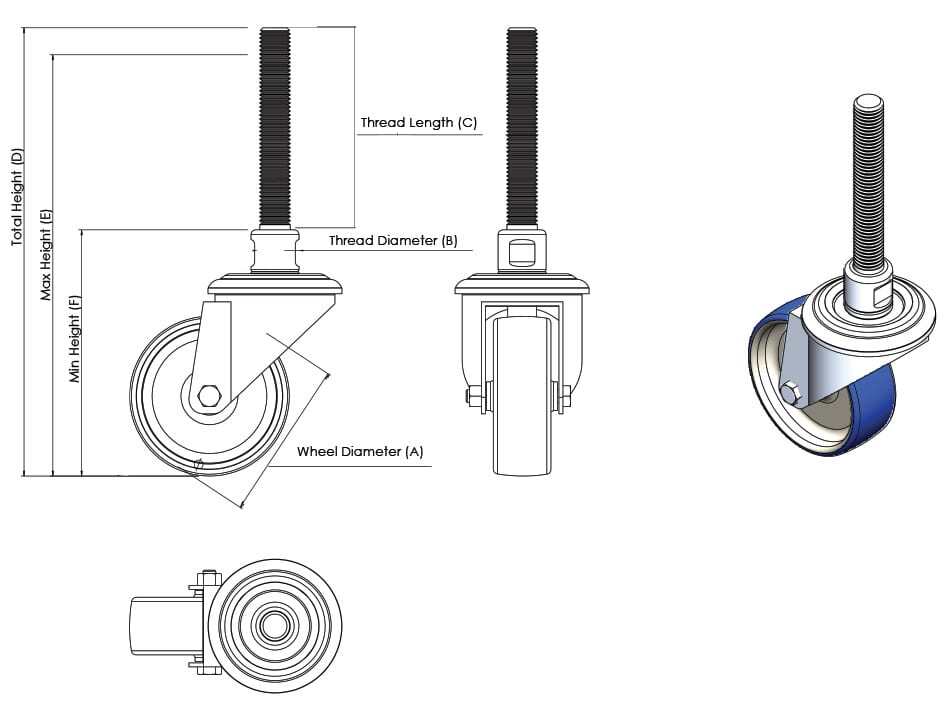

| Wheel Diameter (A) |
Thread Diameter (B) |
Thread Length ( C) |
Total Height (D) |
Max Height ( E) |
Min Height (F) |
Caster Item # (G) |
| 80 | 3/4 | 5.9" | 10.2" | 8.7" | 7.2" | LCXH080-XHCM123459-RHOX3420 |
| 8.3" | 12.5" | 11.0" | 8.4" | LCXH080-XHCM123483-RHOX3432 | ||
| 1.0 | 5.9" | 10.2" | 8.7" | 7.2" | LCXH080-XHCM121059-RHOX1020 | |
| 8.3" | 12.5" | 11.0" | 8.4" | LCXH080-XHCM121083-RHOX1032 | ||
| 100 | 3/4 | 5.9" | 10.9" | 9.4" | 8.0" | LCXH100-XHCM123459-RHOX3420 |
| 8.3" | 13.3" | 11.8" | 9.2" | LCXH100-XHCM123483-RHOX3432 | ||
| 1.0 | 5.9" | 10.9" | 9.4" | 8.0" | LCXH100-XHCM121059-RHOX1020 | |
| 8.3" | 13.3" | 11.8" | 9.2" | LCXH100-XHCM121083-RHOX1032 | ||
| 125 | 3/4 | 5.9" | 12.0" | 10.5" | 9.1" | LCXH125-XHCM123459-RHOX3420 |
| 8.3" | 14.4" | 12.9" | 10.3" | LCXH125-XHCM123483-RHOX3432 | ||
| 1.0 | 5.9" | 12.0" | 10.5" | 9.1" | LCXH125-XHCM121059-RHOX1020 | |
| 8.3" | 14.4" | 12.9" | 10.3" | LCXH125-XHCM121083-RHOX1032 |
