Type LCXHB

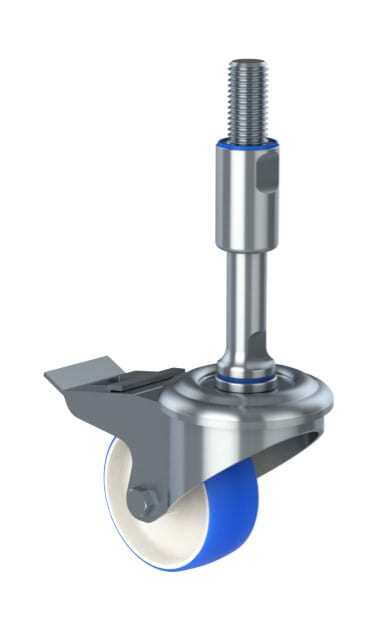

The design and patent protected LCXHB hygienic leveling swivel castor with brake, is the optimal choice for machinery and equipment in diverse sanitary production environments. The LCXHB is equipped with a horizontal and vertical brake, which totally locks the position of the castor. Spindle parts are 100% hygienically sealed with blue sealings detectable by scanning systems.
INDUSTRY APPLICATIONS

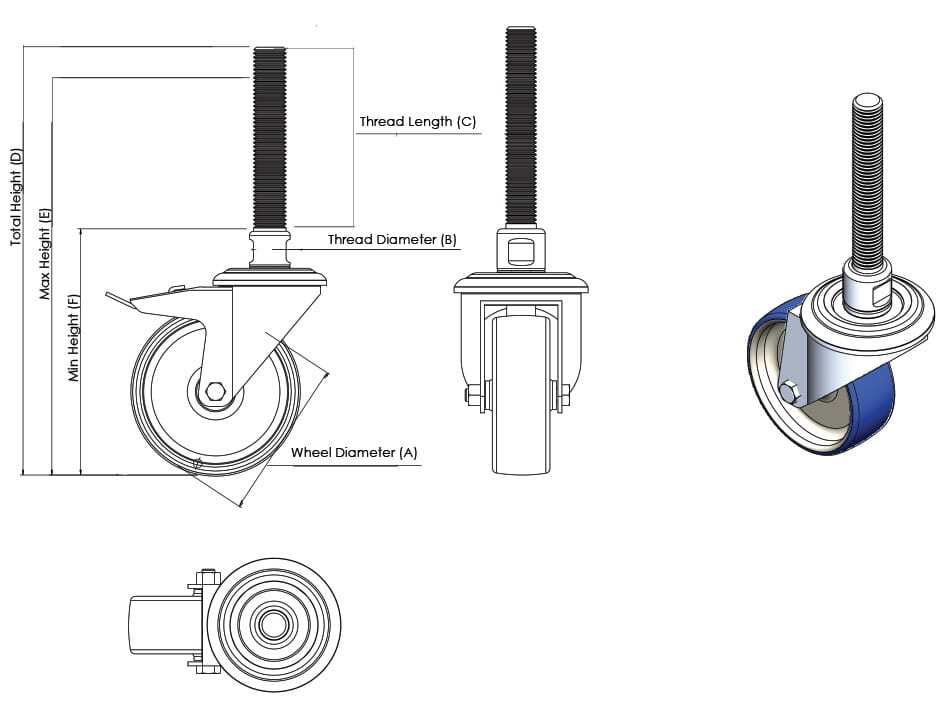

Product Details
| Wheel Diameter (A) |
Thread Diameter (B) |
Thread Length ( C) |
Total Height (D) |
Max Height ( E) |
Min Height (F) |
Caster Item # (G) |
| 80 | 3/4 | 5.9" | 10.2" | 8.7" | 7.2" | LCXHB080-XHCM123459-RHOX3420 |
| 8.3" | 12.5" | 11.0" | 8.4" | LCXHB080-XHCM123483-RHOX3432 | ||
| 1.0 | 5.9" | 10.2" | 8.7" | 7.2" | LCXHB080-XHCM121059-RHOX1020 | |
| 8.3" | 12.5" | 11.0" | 8.4" | LCXHB080-XHCM121083-RHOX1032 | ||
| 100 | 3/4 | 5.9" | 10.9" | 9.4" | 8.0" | LCXHB100-XHCM123459-RHOX3420 |
| 8.3" | 13.3" | 11.8" | 9.2" | LCXHB100-XHCM123483-RHOX3432 | ||
| 1.0 | 5.9" | 10.9" | 9.4" | 8.0" | LCXHB100-XHCM121059-RHOX1020 | |
| 8.3" | 13.3" | 11.8" | 9.2" | LCXHB100-XHCM121083-RHOX1032 | ||
| 125 | 3/4 | 5.9" | 12.0" | 10.5" | 9.1" | LCXHB125-XHCM123459-RHOX3420 |
| 8.3" | 14.4" | 12.9" | 10.3" | LCXHB125-XHCM123483-RHOX3432 | ||
| 1.0 | 5.9" | 12.0" | 10.5" | 9.1" | LCXHB125-XHCM121059-RHOX1020 | |
| 8.3" | 14.4" | 12.9" | 10.3" | LCXHB125-XHCM121083-RHOX1032 |
