Type M

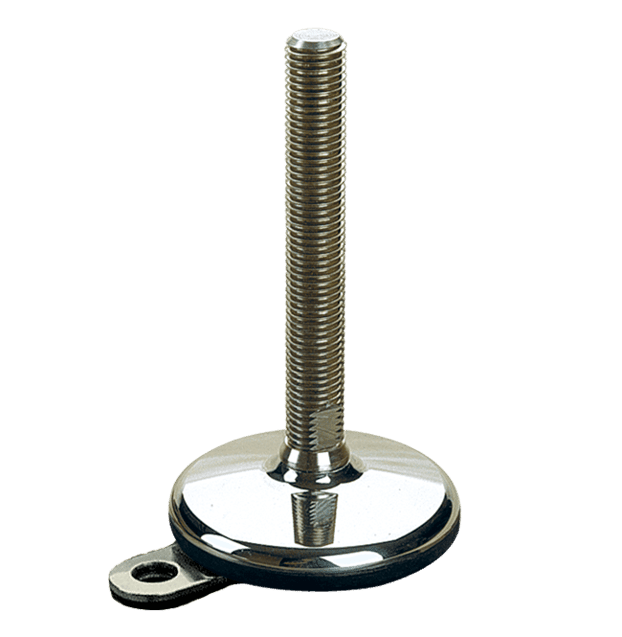

The Sunnex "Type M" Series has a rounded and polished surface design, for applications requiring frequent cleaning and wash-down. The 5° swivel provides full functionality even on inclined surfaces. Models are available in a wide range of load capacities, bolt diameters and length configurations. The M Series Hygienic Leveling Mounts are for added cleanliness. Optional anchoring holes are available to provide easy fastening to equipment. In addition, integrated adjustment flats in the bolt allow full adjustment, without sacrificing height, even in a blind hole design.
INDUSTRY APPLICATIONS
Product Details
FEATURES
- Rubber meets FDA standard 177.2600
- Wide temperature range (-20 to 100°C)
- Rubber permanently vulcanized to housing
- 5° swivel
- Optional Fixing hole versions available
BENEFITS
Ideal for :
- Conveyors
- Material handling equipment
- Vibratory feeders
- Shaker bowls
- Automated assembly equipment
- Production conveyors
- Packaging filling machines

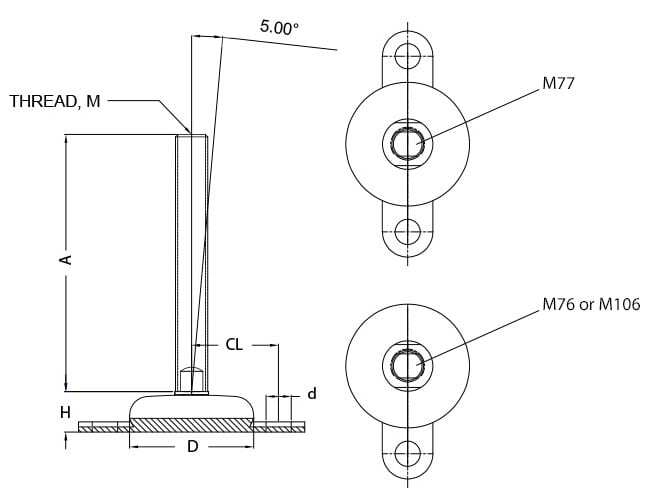

| US Standard Chart - Fixing version | ||||||||
|---|---|---|---|---|---|---|---|---|
| Item | Load (lbs) | Base Dia. (D) | Thread (M) | Length (A) | Base H | Overall Ht | Hole (d) | Center (CL) |
| M76124 | 1,770 | 2.95 | 1/2-13 | 4 | 0.87 | 4.87 | 0.63 | 2.05 |
| M76584 | 5/8-11 | |||||||
| M76586 | 6 | 6.87 | ||||||
| M76346 | 3/4-10 | |||||||
| M77124 | 1/2-13 | 4 | 4.87 | |||||
| M77584 | 5/8-11 | |||||||
| M77586 | 6 | 6.87 | ||||||
| M77346 | 3/4-10 | |||||||
| M106124 | 2,220 | 3.94 | 1/2-13 | 4 | 1.26 | 5.26 | 2.64 | |
| M106584 | 5/8-11 | |||||||
| M106586 | 6 | 7.26 | ||||||
| M106346 | 3/4-10 | |||||||
