WM-Series

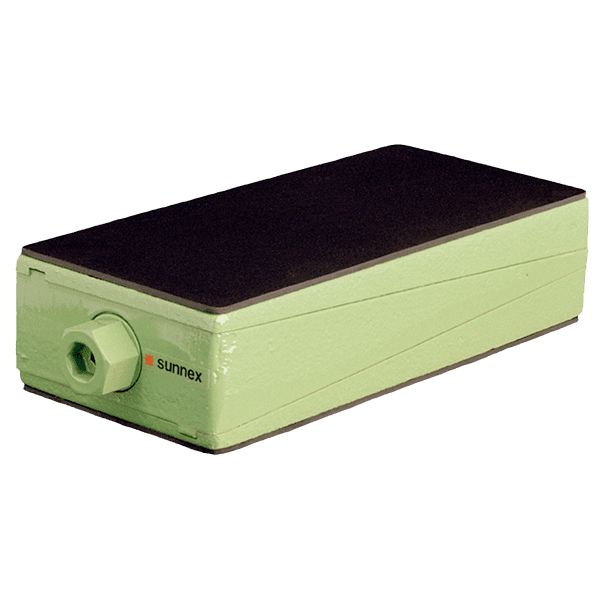

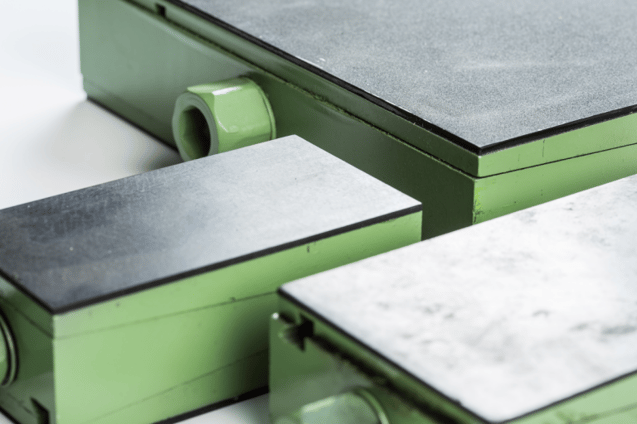

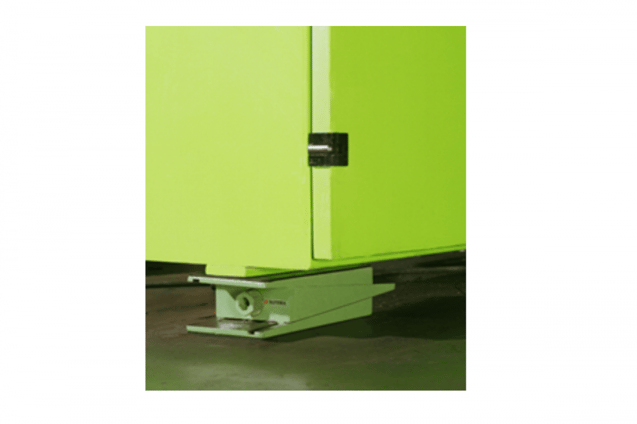

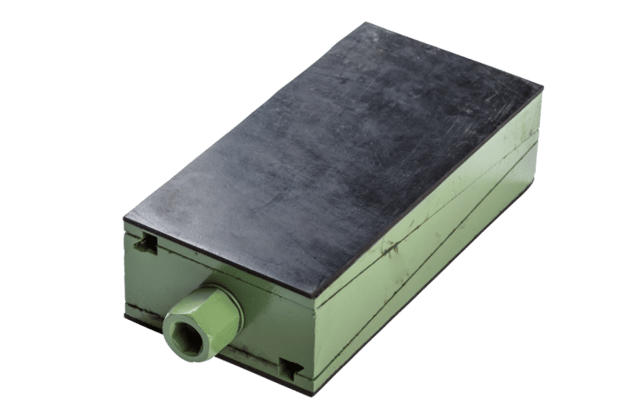

The Sunnex WM wedge style series of leveling mounts are designed for applications requiring the highest load capacities, as well as high-precision leveling adjustment. The WM series combines minimal height profile with passive vibration dampening. The WM is most widely used in its standard configuration of free standing connection, however for those equipment types with large horizontal forces. Sunnex WM leveling mounts are available in both a bolt on and a bolt through design variation.
INDUSTRY APPLICATIONS
Product Details
FEATURES
- Free standing
- Bolt On
- Bolt Thru
- Up to 26400lbs
BENEFITS
- Precise leveling
- Reliable and secure bolt connection to machine
- Flexible height adjustment
- Extremely secure fastening bolts which allow anchoring to the floor
RESOURCES

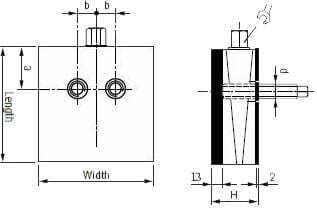

Wedge Mounts | Item No. | Load (lbs.) | Adjust., A (In) (+/-) | Wrench | Height, H NOM. (In) | Length, L (In) | Width, W (In) | |||
---|---|---|---|---|---|---|---|---|---|---|
WM 10 | 47004 | 3,300 | 0.16 | 13 mm | 1.57 | 4.13 | 2.17 | |||
WM 10-14 | 47074 | 1,100 | 2.09 | |||||||
WM 20 | 47007 | 7,700 | 0.2 | 19 mm | 1.61 | 5.91 | 2.95 | |||
WM 20-14 | 47070 | 2,860 | 2.13 | |||||||
WM 30 | 47010 | 12,540 | 0.24 | 22 mm | 1.77 | 7.87 | 3.75 | |||
WM 30-14 | 47065 | 4,840 | 2.36 | |||||||
WM 40 | 47016 | 26,400 | 1.93 | 7.87 | ||||||
WM 40-14 | 47067 | 8,800 | 2.44 |
